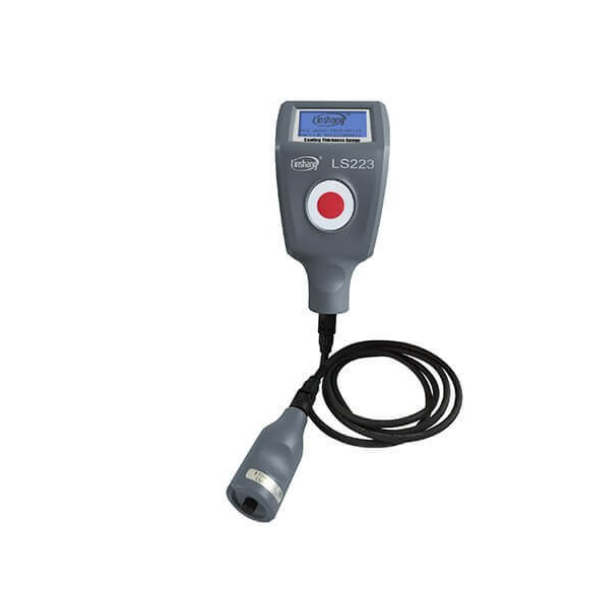

Linshang LS223 ເຄື່ອງວັດແທກຄວາມຫນາຂອງການເຄືອບ (Fe:0.0-5000μm NFe:0.0-3000μm)

Measuring range: Fe:0.0-5000μm, NFe:0.0-3000μm

Resolution:

0.1μm: 0μm-99.9μm

1μm: 100μm-999μm

0.01mm: 1.00mm-5.00mm

Accuracy:

≤±(3%H+2μm):0-3000μm, H is the standard value

≤±(5%H+2μm):3000-5000μm, H is the standard value

Unit: μm / mil

Measuring interval: 0.5s

Minimum measuring area: Ø = 25mm

Minimum curvature: Convex:5mm / Concave:25mm

Minimum substrate thickness: Fe:0.2mm / NFe:0.05mm

Display: 128×64 dot matrix LCD

Power supply: 2pcs of 1.5V AA alkaline battery

Operation temperature range: 0℃-50℃

Storage temperature range: -20℃-60℃

Host size: 126*66*35 mm

Probe size: 22*26*55 mm

Weight(with battery): 160 g
