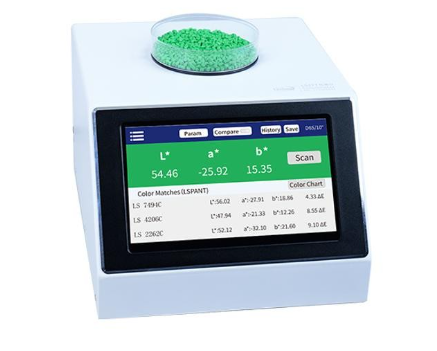

Linshang LS177 ຄໍໂລຣມິເຕີ

Illumination geometry D/8, specular component include (SCI)

Illumination light source Full spectrum LED light source

Spectral range 400-700nm

Spectral interval 10nm

Measuring aperture 50mm

Measurement conditions Light source D65, field of view 10°

Measuring time About 1.5s

Color space CIE Lab, Luv, LCh, Yxy, CMYK, RGB, WI-98, WI-Gauz, WI-Hunter, YI-98, WI-R457, Reflectance

Color difference formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔE*cmc(1:1), ΔE*cmc(1.4:1)

Repeatability Standard deviation ΔE*ab is within 0.03 (Measurement condition: the average value of 30 measurements on the whiteboard at an interval of 3s after calibration)

Inter-instrument agreement △E*ab<=0.4, based on avg. of 12 BCRA series II tiles

Dimension 21.1 × 26.4 × 15.5cm (L×W×H)

Weight About 3.29kg

Power supply 100~277V 0.4A 50/60HZ

Display 7-inch 1024*600 dot matrix IPS color screen

Language Simplified Chinese, English

Data transmission USB, Bluetooth

Operating temperature range 0~45℃, 0~85%RH (no condensation)

Storage temperature range -25~55℃, 0~85%RH (no condensation)
