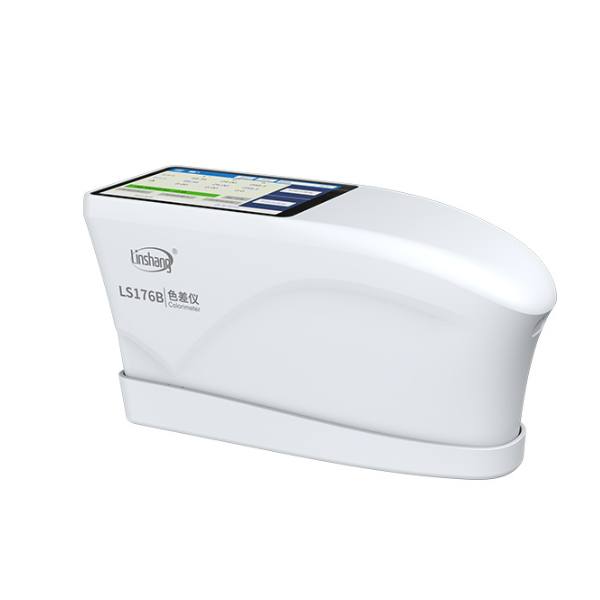

Linshang LS176B ເຄື່ອງວັດແທກແສງຕາເວັນ

Illumination geometry: D/8, specular component include (SCI)

Illumination light source: Full spectrum LED light source

Spectral Range: 400-700nm

Spectral Interval: 10nm

Measuring aperture: 8mm

Measurement conditions: Light source D65, field of view 10°

Measuring time: About 1s

Color space: CIE Lab, Luv, LCh, Yxy, CMYK, RGB, Hex, WI-98, WI-Gauz, WI-Hunter, YI-98, Reflectance

Color difference formula: ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00

Repeatability: Standard deviation ΔE*ab is within 0.03 (Measurement condition: the average value of 30 measurements on the whiteboard at an interval of 3s after calibration)

Dimension: 179mm * 64.5mm * 93mm

Weight: About 325g

Power supply: Rechargeable lithium battery 3.7V@4000mAh, can measure 10,000 times continuously under full charge

Display: 480 * 320 dot matrix IPS color screen

Language: Simplified Chinese, English

Charging port: USB (Type-C)

Data transmission: USB, Bluetooth

Operating temperature range: 0~45℃, 0~85%RH (no condensation)

Storage temperature range: -25~55℃, 0~85%RH (no condensation)
