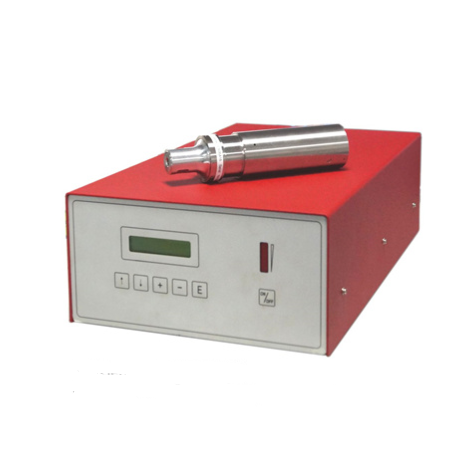

Input Voltage: 190-265V AC , 1 Phase , 50-60Hz
Size: H130XW250XL415mm
Weight: 6kg
Color: RAL3020 Display 2X16 Characters with backlight
LED Bar: Display percentage of output power will display the Max output power after welding
Keyboard: 6 Keys plus on/off
Microcontroller Generator: 16bit/20MHz
AD/DA Converter: 10/12 bit
Frequency Range: 34700-35150HZ
Power Measuring: Realtime
Frequency measurement: Real time, can be automatically adjusted to the normal frequency range
Nominal Output Power: 1200W
Maximum Output Power: 10% above nominal power
Internal Amplitude: 60%-100% at 5% steps
External Amplitude: Enter digits to set
Operating Mode: Time/US-Stop
Time Mode: 0.005-9.999S, precision 0.001s
Ultrasound Vibration Mode: Built in
Trigger Mode: Time trigger setting range: 0.000-9.999S
Internal Power Supply: 24V DC/400mA stabilized & short circuit protected
Input: Opto coupler20-28V DC/max.7mA
Output: Opto coupler 22-26V DC/max250mA , Short circuit protected
Emergency Stop: Message in display
Error Message: Display/Hardware output ( can choose buzzer)
Buzzer: Press the confinn key on keyboard and appear the error message, it wiU make a sound
Connectors: An Standard D-sub
Main Power Switch: On the back of electric box Language: E,D,SP,F,I,P,S,DK,N,SF,NL,CZ,PL,RO,SLO,H,TR
Temperature: -5*C - 45*C/Stock-20*C - 60*C
