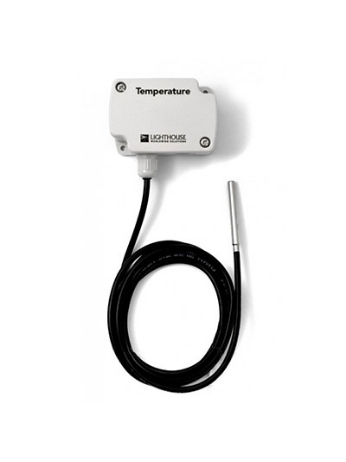

Lighthouse Remote RTD ເຊັນເຊີອຸນຫະພູມ (-30 °C... +105 °C)
Suited for cleanroom applications and for monitoring laboratory equipment
Ideal for incubator, oven, fridge, and freezer applications in your facility or basic room monitoring
Active Output
Working Range: Remote probe: -30 °C... +105 °C (-22 °F...+221 °F)
Output: 4 - 20 mA
Sensing Element: Pt1000 (class A, DIN EN60751)
Accuracy: ±0.3 °C (±0.54 °F) at 20 °C (68 °F)
Power Supply: 10 V DC + RL x 20 mA < V+ < 35 V DC
Electromagnetic Compatibility: EN61326-1, EN61326-2-3 - Industrial Environment
Passive Output
Working Range: -30 °C...+105 °C (-22 °F...+221 °F)
T-sensor Connection: Two-wire
Electrical Connection: screw terminal, 2x max. 2.5 mm 2 (0.004 in 2 )
General
Housing Material: Polycarbonate, UL94V-0 (with Display UL94HB) approved
Protection Class: Enclosure IP65 / NEMA4, remote probe IP20
Cable Gland: M16x1.5, UL94-V2
Hose Clamp Material: stainless steel (corr. 1.4301 / 304)
Storage Temperature: -30 °C...+70 °C (-22 °F...+158 °F)
Storage And Working Humidity: 5 % rh...95 % rh, no condensation
