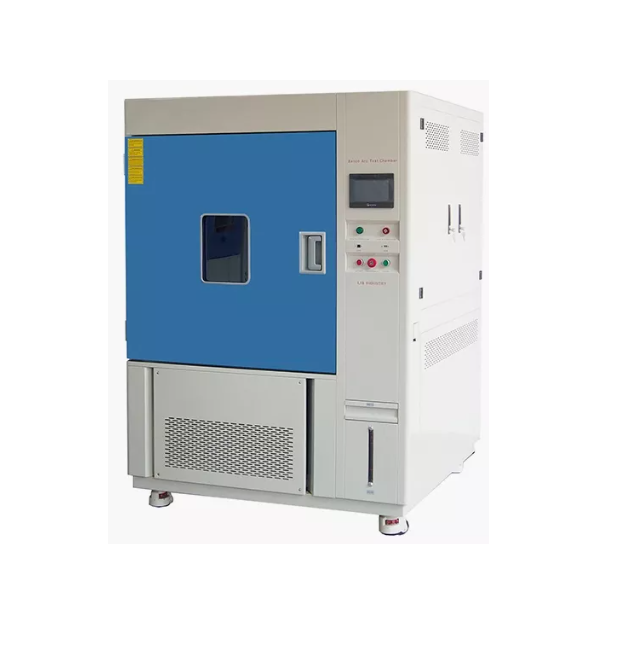

LIB XL-S-750 ຫ້ອງທົດສອບການຕ້ານທານການສວມໃສ່ຂອງ Xenon ທີ່ເລັ່ງລັດ (35 ~ 150 W/㎡)

Internal Dimension (mm): 950*950*850 mm

Overall Dimension (mm): 1400*1400*1950 mm

Specimen Holder Size(mm): 95*180

Specimen Capacity: 42pcs

Chamber Type: Rotating Holder

Irradiation Source: 1 piece of 4500w water-cooled xenon arc lamp

Irradiance Range: 35~150 W/㎡

Bandwidth Measurement: 300nm~400nm (340nm or 420nm)

Chamber Temperature Range: Ambient ～ 100 ℃ ±2℃

Black Panel Temperature: BPT 35 ～ 85 ℃ ±2℃

Humidity Range: 50% ~ 98% RH

Humidity Deviation: ± 5% RH

Water Spray Cycle: 1~9999H59M (Adjustable)

Controller: Programmable color LCD touch screen controller

Water supply system: Automatic water supply, Water purification system

Radiometer: UV Radiometer, Tolerance: ±5%

Cooling System: Mechanical compression refrigeration system

Safety Device: Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection

Exterior Material: Steel plate with protective coating

Interior Material: SUS304 Stainless steel

Product Advantage

1. Comprehensive Sunlight Simulation: Equipped with a 4500 W water-cooled xenon lamp lasting up to 1600 hours and interchangeable filters (daylight, window glass, extended UV), the chamber reproduces the full 280–800 nm light spectrum, meeting ASTM G155 and other relevant international standards.

2. Accurate Climate Control: The system precisely regulates black panel temperature between 35–85 °C (±2 °C) and humidity from 30–98 % RH (±2.5 %), with flexible dry/wet and water spray cycles to emulate real environmentalconditions.

3. Consistent Sample Exposure: A rotating rack accommodates up to 42 specimens, ensuring uniformillumination and moisture distribution across all surfaces for reliable and representative test outcomes.

4. Smart Automation and Data Management: Advanced PID control continuously monitors light intensity and temperature, automatically logs test data, and offers remote monitoring and centralized management through a multilingual interface with Ethernet/Wi-Fi connectivity.

5. Eco-Friendly Water System: The chamber uses closed-loop water circulation with multi-stage filtration and partial recycling, minimizing water consumption while maintaining clean, consistent spray for efficient and sustainable operation.

6. Reliable Quality Certification: We firmly believe that quality comes first. Quality control is implemented at every stage—from raw material selection and manufacturing to final inspection. Our chambers are CE and RoHS compliant, covering both standard and customized models, with in-stock units available for immediate shipment.

7. Service Advantages: Comprehensive support from purchase to operation, 36-month warranty, lifelong technical service, 20-year design life, turn-key delivery, and flexible customization for reliable, long-term performance.

8. Customization: Our chambers can be fully customized in size, volume, workroom structure, performance, configuration, language, optical filters, specimen holders (including 3-D holders), and calibration units, ensuring compliance with ISO, ASTM, SAE, AATCC, IEC, and other standards. Please contact us for further information.
