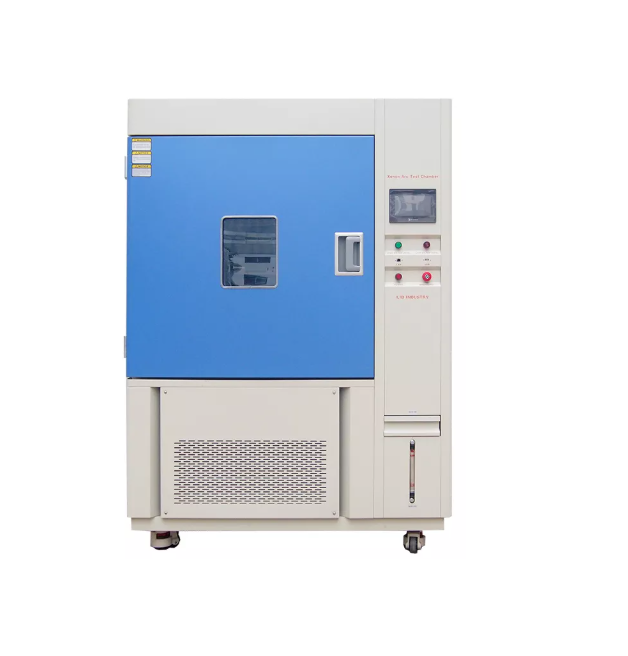

LIB XL-S-500 ການທົດສອບຄວາມທົນທານຂອງແສງ, ເຄື່ອງວັດອຸນຫະພູມຫ້ອງ Xenon Arc (35 ~ 150 W/㎡)

Internal Dimension (mm): 950*950*850 mm

Overall Dimension (mm): 1400*1400*1950 mm

Specimen Holder Size(mm): 95*180

Specimen Capacity: 42pcs

Chamber Type: Rotating Holder

Irradiation Source: 1 piece of 4500w water-cooled xenon arc lamp

Irradiance Range: 35~150 W/㎡

Bandwidth Measurement: 300nm~400nm (340nm or 420nm)

Chamber Temperature Range: Ambient ～ 100 ℃ ±2℃

Black Panel Temperature: BPT 35 ～ 85 ℃ ±2℃

Humidity Range: 50% ~ 98% RH

Humidity Deviation: ± 5% RH

Water Spray Cycle: 1~9999H59M (Adjustable)

Controller: Programmable color LCD touch screen controller

Water supply system: Automatic water supply, Water purification system

Radiometer: UV Radiometer, Tolerance: ±5%

Cooling System: Mechanical compression refrigeration system

Safety Device: Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection

Exterior Material: Steel plate with protective coating

Interior Material: SUS304 Stainless steel

Key Advantages

1. Realistic Full-Spectrum Sunlight Simulation: Equipped with a 4500 W water-cooled xenon arc lamp and interchangeable optical filters (daylight, window glass, extended UV), the chamber accurately reproduces the natural solar spectrum from 280–800 nm. This ensures reliable simulation of outdoor sunlight exposure in accordance with ISO 4892 and ASTM G155 requirements.

2. High-Precision Light and Climate Control: Irradiance can be precisely set at key wavelengths such as 340 nm or 420 nm, with a wide adjustment range to support different testing intensities. Black panel temperature is controlled within ±1–2 °C, while humidity regulation ensures stable and repeatable aging conditions throughout the test cycle.

3. Uniform Sample Exposure with Rotating Rack: The rotating sample holder design guarantees consistent exposure for up to 42 specimens, minimizing test variability. Uniform airflow and moisture distribution improve repeatability and ensure representative aging and lightfastness results.

4. Advanced Automation and Data Management: An intelligent PID control system continuously monitors and adjusts test parameters, while automatic data recording via Ethernet enables long-term, unattended testing. Remote monitoring and multilingual interfaces improve usability and laboratory efficiency.

5. Efficient and Eco-Friendly Water System: The closed-loop water supply system supports lamp cooling, humidification, and water spray functions. Multi-stage filtration and partial water recycling reduce consumption while maintaining stable and clean spray conditions for long-duration tests.

6. Reliable Safety and Quality Assurance: The chamber is equipped with comprehensive safety protections, including over-temperature protection, over-current protection, water shortage protection, earth leakage protection, and phase sequence protection. All systems are designed and manufactured under strict quality control standards and comply with CE and RoHS requirements.

7. Flexible Customization Capability: The weatherometer can be customized in chamber size, specimen holders (flat, rotary, or 3D), number of radiometers, water spray nozzle layout, control position, viewing windows, and even walk-in configurations. Special designs can support ultra-low temperatures down to –70 °C with reinforced lamp, refrigeration, and sensor systems.
