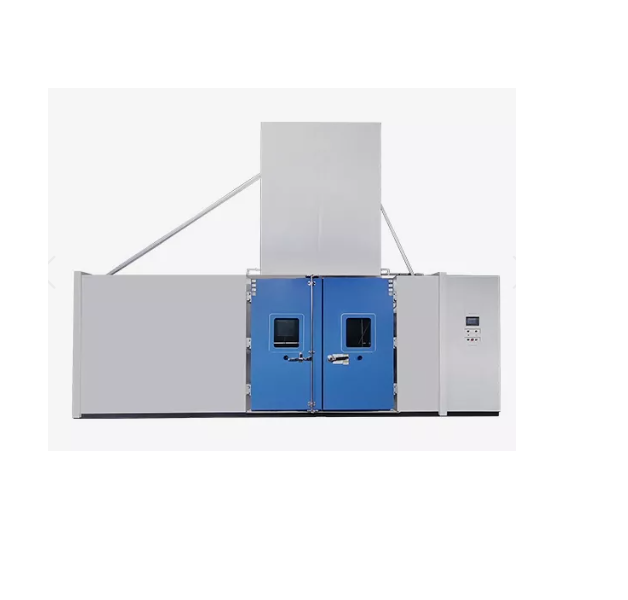

LIB RIM-1000 ຫ້ອງທົດສອບຝົນທີ່ພັດຜ່ານໄດ້ຕາມມາດຕະຖານ MIL-STD-810H (1000 L)

Internal Dimension: 1000*1000*1000 mm D*W*H

Overall Dimension: 2600*5400*4100 D*W*H

Interior Volume: 1000L

The load Turntable: 50kg

The diameter of Turntable: 800mm

Rain and Blowing Rain:

Final rain droplet velocity: 9m/s on test item

Rainfall rate: ≥ 1.7 mm/min

Droplet size: 0.5mm ~ 4.5mm

Test specimen heating range: Water temperature +10°C (max +55°C)

Test time: 0 ~ 999min. adjustable

Exaggerated:

Nozzle pressure: 276kpa

Rainfall rate: 20.8L/min

Nozzle amount: One nozzle for each 0.56m2 of surface area and position each about 48cm from in the test surface

Droplet size: 0.5mm ~ 4.5mm

Test time: 0 ~ 999min. adjustable

Drip:

Drip area dimensions: 1600*1000mm , height can be adjustable

Drip holes: 20 to 25.4mm

Distance between hole: 25mm

Volume of water: ≥280L/m2/h

Test specimen heating range: Water temperature +10°C (max +55°C)

Door Lock: Electromagnetic lock

Exterior Material: A3 Steel Plate with protective coating

Interior Material: SUS304 stainless steel

Standard: MIL-STD- 810H

Advantages

1. Extreme Weather Simulation: The chamber replicates heavy rain, wind-driven showers, and pressurized water sprays with adjustable rain rates (10–20 cm/hour) and wind speeds (5–18 m/s). This ensures products experience realistic storm conditions, helping engineers identify vulnerabilities before field deployment.

2. Full 360° Exposure: Equipped with a liftable drip tray and a 360-degree nozzle array, the chamber delivers uniform water coverage from all angles. Coupled with a rotating turntable (1–7 r/min), every surface of the test sample is consistently exposed for accurate and repeatable results.

3. Customizable Test Profiles: Programmable PID control allows precise adjustment of rain intensity, droplet size (0.5–4.5 mm), wind speed, and test duration. Users can create complex sequences to simulate multiple storm scenarios, increasing test flexibility and efficiency.

4. Durable and Corrosion-Resistant Construction: The interior is crafted from SUS304 stainless steel to withstand high-humidity exposure, while the A3 steel exterior with protective coating ensures long-term durability. This robust build supports repeated testing without degradation of chamber performance.

5. Safe and Reliable Operation: Integrated water-electricity separation, electromagnetic door lock, and over-pressure protections safeguard both the operator and the equipment. These features minimize risk during high-intensity water tests, ensuring safe and uninterrupted testing cycles.
