Internal Dimensions (mm): 900*950*950
Overall Dimensions (mm): 1180*1420*1920 (excluding stainless steel tube)
Useful Volume (L): 810
Drip Tray Size: 600*600
Oscillating Tube Radius: 400mm
Water Jetting Tube:
Spraying Hole Diameter: φ0.4mm
Hole Spacing: 50 mm
Swing Angle of Oscillating Tube: 0 ~ ±180° (Adjustable）
Jet nozzles: IPX5: Dia6.3mm, IPX6: Dia12.5mm
Jet distance: 2.5~3meter
Turntable Rotation Speed: 1r/min (Adjustable speed)
Controller: Programmable color LCD touch screen controller, Ethernet connection, USB port
Water supply system: Water tank, booster pump, Automatic water supply, Water purification system
Safety Device: Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection
Exterior Material: Steel Plate with protective coating
Interior Material: SUS304 stainless steel
Observation Window: Double layer insulating glass with wiper
Advantages

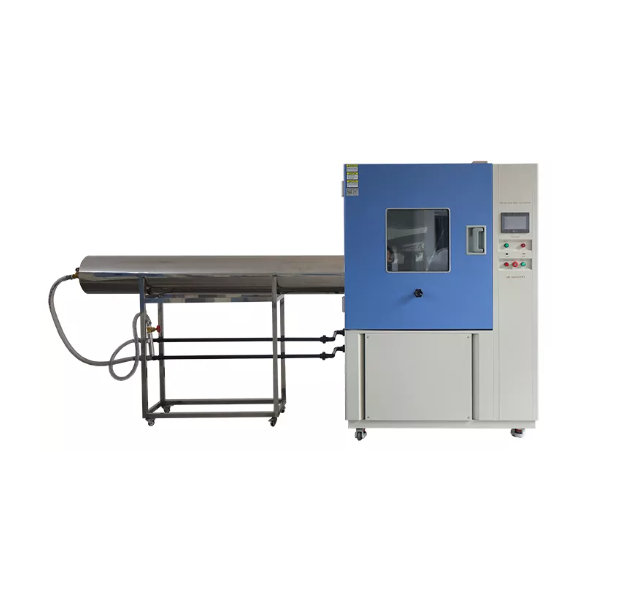

1 . Integrated Multi-Level Testing for Efficient Lab Use: LIB's Combined Chamber(IPX1 X2 X3 X4 X5 X6) unifies a drip box (IPX1/IPX2), oscillating tube (IPX3/IPX4), and high-pressure jet nozzles (IPX5/IPX6) into a single unit, allowing all six water ingress test levels to be conducted without the need for multiple chambers, saving valuable laboratory space.
2 . Automatic Water Filtration and Recirculation: The chamber features a closed-loop water recycling system with automatic refill, reducing water and energy consumption while enabling continuous unattended testing.
3. Standards-Compliant Testing Ensures Reliable Data: The chamber meets IEC 60529 specifications:
①IPX1: Vertical drip at 1 mm/min for 10 minutes on a rotating turntable at 1 rpm.
②IPX2: Same drip rate at 15° tilt, tested in four directions for 2.5 minutes each (total 10 minutes).
③IPX3: Oscillating tube sprays water with ±60° swing, 0.4 mm nozzle diameter, 50 mm spacing, 0.07 L/min per nozzle, minimum 10 minutes.
④IPX4: Swing angle extended to ±180°, same flow parameters as IPX3 for more intense splash simulation.
⑤IPX5: Special nozzle, 6.3 mm orifice, 12.5 ± 0.625 L/min flow, pressure 30–100 kPa, 2.5–3 m spray distance, minimum 3 minutes.
⑥IPX6: 12.5 mm nozzle, 100 ± 5 L/min flow, 100 ± 5 kPa, same spray distance as IPX5, duration at least 3 minutes.
4 . Flexible Sample Handling for Various Products：The internal turntable is height-adjustable and equipped with a 15° inclined plate for IPX2 tests. It supports up to 50 kg and can be customized to accommodate different sample sizes.
5.Durable SUS304 Stainless Steel Construction：The chamber is fully constructed from SUS304 stainless steel, offering excellent resistance to corrosion in high-temperature (~800°C), high-humidity, and continuous spray environments, ensuring long-term durability and environmental compliance.
6.Multi-Angle Spray System：①IPX1/IPX2: Stainless steel drip box with uniform apertures for precise vertical drip simulation. ②IPX3/IPX4: Stainless steel oscillating tube with 0.4 mm nozzles spaced evenly, ±60° swing for oblique rain simulation. ③IPX5/IPX6: High-pressure spray nozzles delivering 12.5 L/min and 100 L/min, adjustable angles, 2.5–3 m spray distance, ensuring accurate, repeatable testing for automotive, outdoor electronics, and industrial products.
7. Transparent Observation Window with Built-In Illumination：Equipped with a clear viewing window, manual wiper, and integrated LED lighting for real-time inspection, supporting accurate logging and quick fault diagnosis during tests.
8. Waterproof Sample Power Supply: The adjustable-height turntable includes tilt support and an integrated power source, allowing live testing of electronic devices under waterproof conditions to simulate real-world use.
