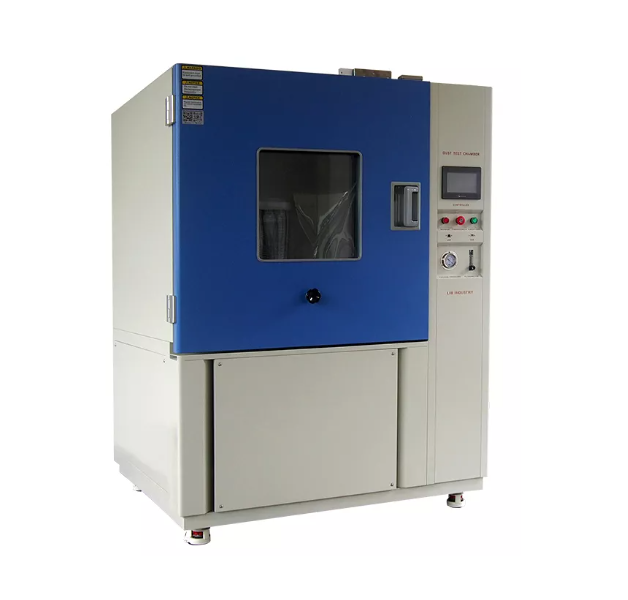

LIB R-1200C IPX1 IPX2 IPX3 IPX4 Water Spray Test Chamber (2400L)

Internal Dimensions (mm): 1300*1350*1370

Overall Dimensions (mm): 1540*1820*2200

Useful Volume (L): 2400

Oscillating Tube Radius: 600mm

Drip Tray Size: 1000*1000

Spraying Hole Diameter: φ0.4mm

Hole Spacing: 50 mm

Swing Angle of Oscillating Tube: 0 ~ ±180° (Adjustable）

Turntable Rotation Speed: 1r/min (Adjustable speed)

Water Pressure Control: Flow meter

Controller: Programmable color LCD touch screen controller, Ethernet connection

Water supply system: Water tank, booster pump, Automatic water supply, Water purification system

Safety Device: Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection

Exterior Material: Steel Plate with protective coating

Interior Material: SUS304 stainless steel

Observation Window: Double layer insulating glass with wiper

Advantages

1. Integrated Multi-Level Testing to Save Lab Space: LIB's IPX1 IPX2 IPX3 IPX4 Water Spray Test Chamber incorporates both a drip box (IPX1/IPX2) and an oscillating tube (IPX3/IPX4) within a single enclosure. This all-in-one configuration allows for six levels of water ingress testing in one chamber, optimizing lab footprint and improving workflow efficiency.

2. Automatic Water Filtration and Recycling System: A closed-loop water recycling system with automatic refill ensures continuous operation while minimizing water and energy consumption. This system supports unattended testing, reducing labor requirements and operational costs.

3. Compliance with International Standards: The chamber is fully compliant with IEC 60529 and other relatedstandards: ①IPX1: 1 mm/min drip rate for at least 10 minutes on a rotating turntable at 1 rpm. ②IPX2: Same drip rate at

15° tilt, tested in four directions for 2.5 minutes each (total 10 minutes). ③IPX3: Oscillating tube sprays water with ±60° swing, 0.4 mm nozzle diameter, 50 mm spacing, and 0.07 L/min per nozzle for at least 10 minutes. ④IPX4: Swing angle extends to ±180°, simulating more severe splash conditions.

4. Flexible Sample Handling for Diverse Products: Height-adjustable internal turntable with a 15° inclined plate for IPX2 testing. Supports up to 50 kg and can be customized in size to accommodate various sample dimensions.

5. Durable SUS304 Stainless Steel Construction: Entire chamber is fabricated from SUS304 stainless steel, offering excellent corrosion resistance under high temperature (~800°C), high humidity, and continuous spray conditions, while ensuring environmental compliance.

6. Multi-Angle Spray Systems: ①IPX1/IPX2: Stainless steel drip box with uniform apertures, simulating vertical drip at 1 mm/min.②IPX3/IPX4: Stainless steel oscillating tube with φ0.4 mm evenly spaced nozzles, ±60° swing, simulating oblique rain conditions.

7. Transparent Viewing Window with Built-In Illumination: Equipped with a clear observation window, manual wiper, and LED lighting for real-time inspection, facilitating accurate experiment logging and rapid fault diagnosis.

8. Waterproof Sample Power Supply: Adjustable-height turntable with tilt support and integrated power supply, allowing live power-on testing of electronic devices during waterproof testing to replicate real-world conditions.
