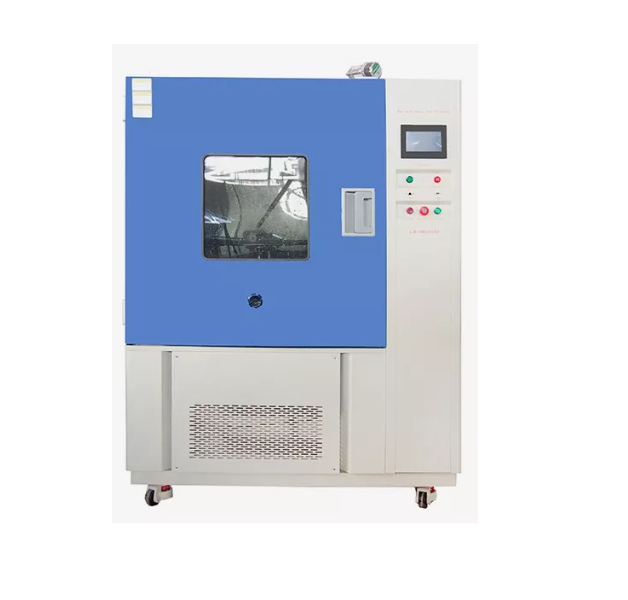

LIB R-1000JIS ຫ້ອງທົດສອບຝົນ ແລະ ສີດນ້ຳ JIS D 0203 (1000L)

Internal Dimensions (mm): 1000*1000*1000 D*W*H

Overall Dimensions (mm): 1100*1460*1900 D*W*H

Interior Volume (L): 1000

Distance from Specimen to Nozzle: Approx.400mm

Rain Nozzle: 2 holes

Rain Nozzle Hole: Φ0.5mm

R1 Water Flow Rate: 1.9L/min.

R2 Water Flow Rate: 3.3L/min.

Spray Nozzle: 40 holes

Spray Nozzle Hole: Φ1.2mm

S1 Water Flow Rate: 24.5L/min

S2 Water Flow Rate: 39.2L/min

Water Pressure at Nozzle: 0.03 ~ 0.30MPA

Turntable Rotation Speed: 17r/min

Water Pressure Control: Flow meter

Controller: Programmable color LCD touch screen controller, Ethernet connection

Water supply system: Water tank, booster pump, Automatic water supply, Water purification system

Safety Device: Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection

Exterior Material: Steel Plate with protective coating

Interior Material: SUS304 stainless steel

Observation Window: Double layer insulating glass with wiper

Advantages

1. High-Fidelity Water Simulation: Equipped with 2 rainfall nozzles and 40 spray nozzles, the chamber can accurately replicate natural rain, wind-driven rain, and heavy spray conditions. Adjustable flow rates from 1.9 L/min to 39.2 L/min and pressures up to 0.30 MPa ensure testing closely mirrors real-world exposure, providing dependable waterproof performance data for automotive components and electronic devices.

2. 360° Rotational Coverage: The sturdy stainless-steel turntable rotates at 17 rpm, delivering uniform water exposure across all surfaces of the test specimens. This comprehensive coverage eliminates blind spots, helping engineers identify potential weak points and improve product durability.

3. Efficient Water Management: The closed-loop circulation and filtration system reduces water consumption while maintaining consistent test conditions. This eco-friendly design not only lowers operational costs but also ensures repeatable and stable performance during long testing cycles.

4. User-Friendly Intelligent Control: The touchscreen PID controller allows precise adjustment of water flow, pressure, test duration, and turntable rotation. Real-time monitoring and alerts via Ethernet simplify operation and enhance testing accuracy.

5. Durable and Safe Construction: Constructed with corrosion-resistant SUS304 stainless steel and featuring a large observation window with wiper, the chamber is built for prolonged water exposure and easy monitoring. Safety mechanisms, including over-pressure, low-water, and electrical leakage protections, ensure reliable and secure operation for both personnel and equipment.
