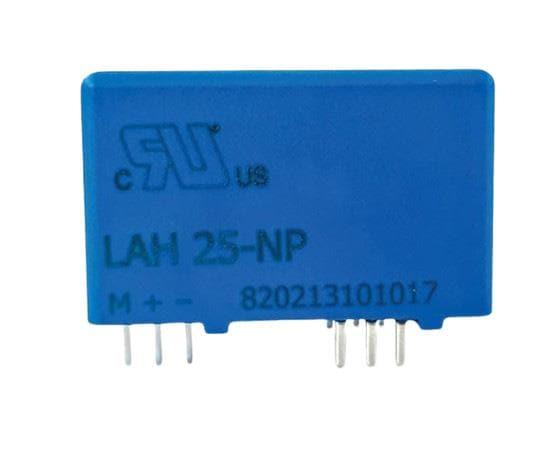

LEM LAH 25-NP Current Transducer Current Transducer LAH 25-NP For the electronic measurement of currents: DC, AC, pulsed..., with galvanic separation between the primary circuit and the secondary circuit.
ຜູ້ຜະລິດ: LEM Model: LAH 25-NP - ຕິດຕໍ່ພົວພັນ
Width: 14.93 mm
Height: 21.15 mm
Length: 33.2 mm
Accuracy: 0.3 %
Output Type: Digital, Analog
Sensor Type: Closed Loop
Unit Weight: 20 g
Response Time: 500 ns
Current Rating: 25 A
Frequency Range: 200 kHz
Supply Voltage - Max: 15 V
Supply Voltage - Min: 12 V
Operating Supply Voltage: 12 V to 15 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 25 C
