Functions:
Minimum / maximum measurements: •
Area / volume measurement: •
Triangle / room angle function: •
Painter function: •
Trapezium measurements: •
Pythagoras functions: 2 points and 3 points
Inclination tracking: •
Smart Horizontal Mode™: •
Sloped object measurement: •
Height tracking: •
Height profile measurements: •
Stake-out function: a/b
Subtraction / addition: •
Typical measuring accuracy: ± 1 mm
Range: up to 200 m
Measuring units: m, ft, in, yd
Power Range Technology™: •
Distance in m: 10, 50, 100 m
Ø of the laser dot in mm: 6, 30, 60 mm
Tilt sensor measuring range: 360°
Pointfinder with 4x zoom: •
Memory: 30 displays
Free App: •
Data interface*: Bluetooth® Smart
Measurements per set of batteries: up to 5000**
Multifunctional end-piece: automatic recognition
Batteries: type AA 2 × 1,5 V
Tripod thread: option
Protection class: IP65 – water jet protection and dust-tight
Dimensions: 143 × 58 × 29 mm
Weight with batteries: 198 g
 |

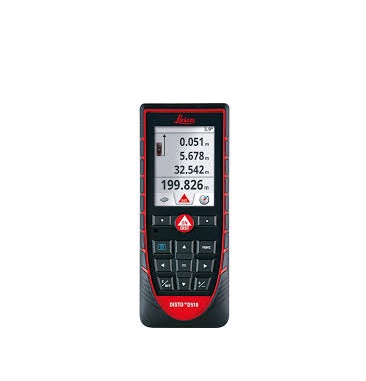

Simple and precise targeting - Pointfinder with 4x zoom With the Pointfinder, the Leica DISTO™ D510 takes measurements with perfect accuracy and in unfavorable light conditions. This is a decisive advantage when working outside in sunny weather. Even if the red laser point is no longer visible to the naked eye, the target can be seen exactly in the crosshairs on the display. |
 |
Unlimited number of measuring options - 360° tilt sensor The Leica DISTO™ D510 is equipped with a 360° tilt sensor. This means that it is not only possible to measure angles, but horizontal distances too! Combined with the Pointfinder, amazing indirect measurement options are provided. Hence, measurements are possible where no reflective target point is available e.g. when determining the height of a tree or when measuring the height of a reflecting glass facade. These could not be measured with a conventional laser distance meter. |
 |
Efficient height profile measurement Using this function, the Leica DISTO™ D510 displays distances and height differences to an established reference point. This makes it easy to quickly make profile measurements, without having to use more expensive measuring methods. Also, this function can be used to check whether cross beams are straight, the levelness of existing floors, among other applications. |
 |
Quick sketching - Bluetooth® Smart with app The Leica DISTO™ D510 is capable of more than just measuring. Measurement data can be conveniently and accurately transferred using the integrated Bluetooth® Smart Technology. The free app Leica DISTO™ sketch supports the creation of ground plans or tables on iPhone or iPad. Dimensions can even be entered onto photographs with no effort whatsoever. |
 |
Modern ergonomics Providing the simplest possible operation of complex measuring functions is a must for Leica Geosystems. The Leica DISTO™ D510 has been adapted to the user interface of modern cell phones. Furthermore your favourite functions can be assigned to a pair of selection keys, for quick access with a single button press. And the integrated, easy-to-understand help function does not leave you in the lurch on site. |
 |
Tough and easy to clean - IP65 The housing and keypad are specially sealed against water and dust. Cleaning under running water is also no problem. Furthermore the laser distance meter can be used in all weather conditions, being dust-proof and |
Delivery package:
Art. No. 792 290
Art. No. 792 319 JP-Version
 |
|
| Technical specifications: | |
| Typical measuring accuracy | ± 1 mm |
| Range | up to 200 m |
| Measuring units | m, ft, in, yd |
| Power Range Technology™ | • |
| Distance in m Ø of the laser dot in mm |
10, 50, 100 m 6, 30, 60 mm |
| Tilt sensor measuring range | 360° |
| Pointfinder with 4x zoom | • |
| Memory | 30 displays |
| Free App | • |
| Data interface* | Bluetooth® Smart |
| Measurements per set of batteries | up to 5000** |
| Multifunctional end-piece | automatic recognition |
| Batteries | type AA 2 × 1,5 V |
| Tripod thread | • |
| Protection class | IP65 – water jet protection and dust-tight |
| Dimensions | 143 × 58 × 29 mm |
| Weight with batteries | 198 g |
| Functions: | |
| Minimum / maximum measurements | • |
| Area / volume measurement | • |
| Triangle / room angle function | • |
| Painter function | • |
| Trapezium measurements | • |
| Pythagoras functions | 2 points and 3 points |
| Inclination tracking | • |
| Smart Horizontal Mode™ | • |
| Sloped object measurement | • |
| Height tracking | • |
| Height profile measurements | • |
| Stake-out function | a/b |
| Subtraction / addition | • |
