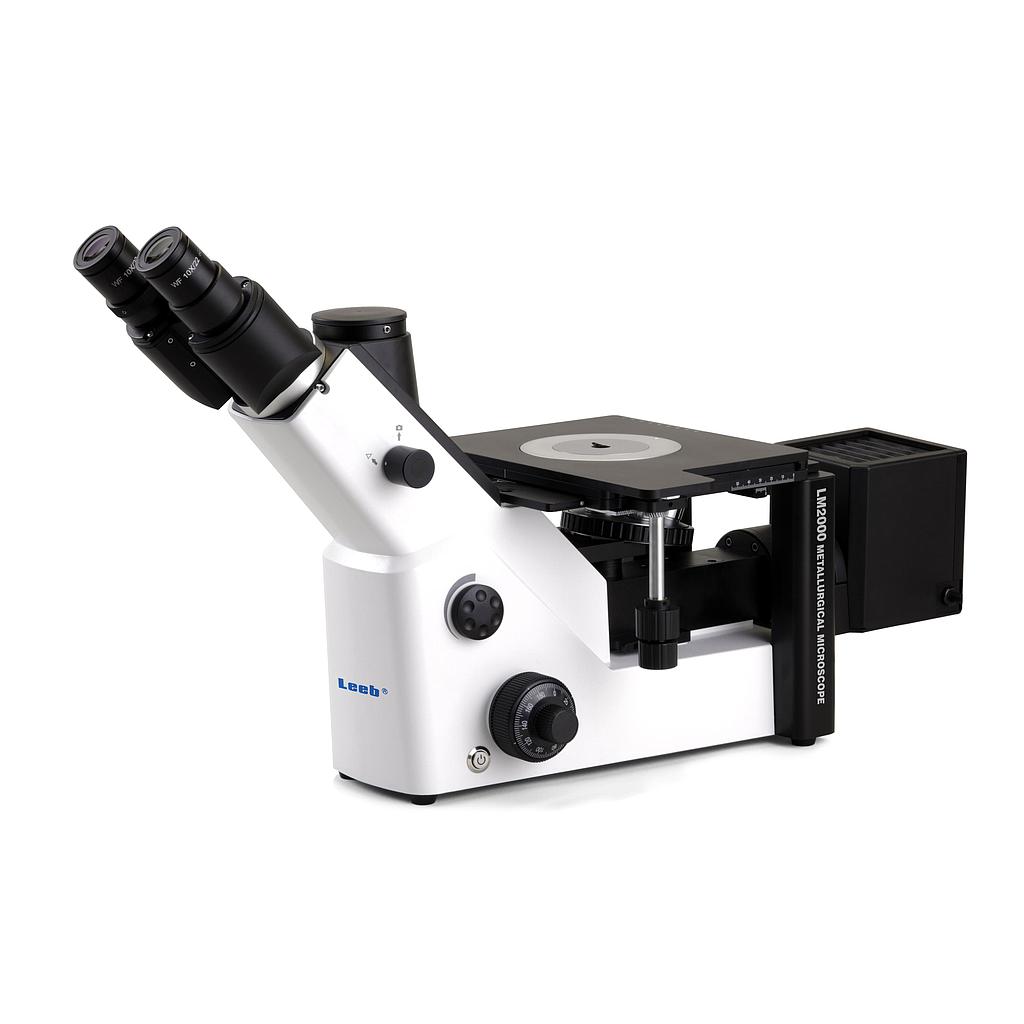

Leeb LM2000 Inverted Metallurgical Microscope (50X ~ 1000X)
Optical System: LIOS Optical System (Infinity-corrected)
Magnification range: 50X ~ 1000X
Eyepiece: Widefield WF10×/ 22mm (Optional φ23mm)
Objectives: Infinity LWD Plan Objectives: 5×/10×/20×/50×/80×/100× (Dry)
Tubes: Trinocular tubes, Inclined 45°, adjustable distance: 50-75mm
Light distribution:
100% for eyepiece observation
70% for eyepiece observation and 30% for camera
Observation mode: Bright-field, Simple polarizing (with polarizing units: Polarizer / Analyzer)
Nosepiece: Brightfield Holes: 5pcs
Focusing unit:
Coarse and Fine coaxial handle
Focus stroke: 12mm, Fine handle stroke per rotation: 200μm (min. scale: 2μm)
Mechanical Stage: Stage size: 210 mm×180mm, each X/Y stroke: 50×50mm, Scale: 0.1mm
Illumination: Kohler Reflected Illumination Optical System (filters are available)
Light source: 12V/50W halogen lamp / 5W LED lamp (optional) adjustable Light Intensity
Electrical system:
Safe low voltage DC input: 12V5A
Power Adapter Input voltage: 100V～240V
Output port: For CCD / CMOS Camera & Digital Still Camera of CANON／NIKON／OLYMPUS
Adaptor of Camera: 1×/0.75×/0.5×C-Mount (focus adjustable)
Optional Camera & Software: CCD / CMOS industrial camera and PC software (Not an analysis system)
Net Weight: 12Kg
Dimension: 27.5*68*37.5cm
