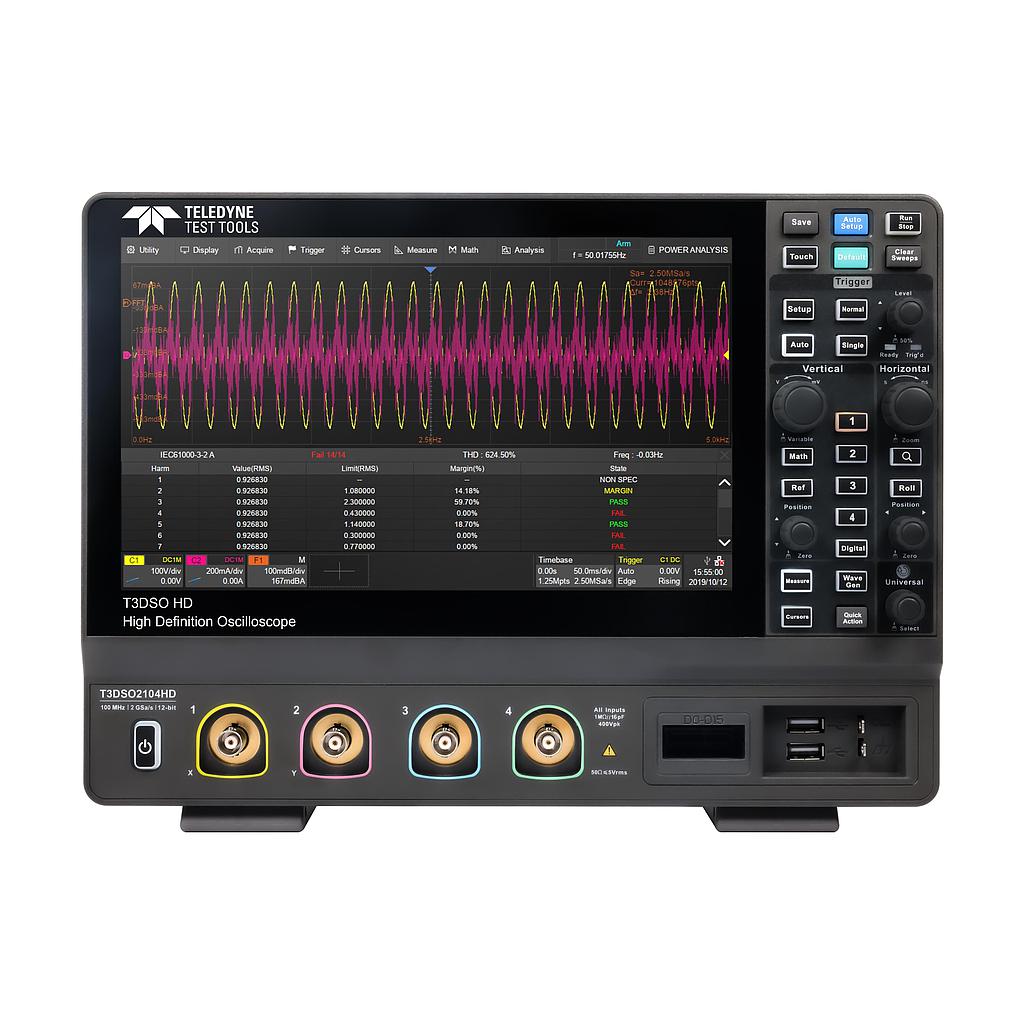

Analog channels: 4 + EXT
Bandwidth: 100 MHz
Vertical resolution: 12-bit
Sample rate (Max.): 2 GS/s (interleaving mode), 1 GS/s (non-interleaving mode)
Memory depth (Max.): 200 Mpts/ch (interleaving mode), 100 Mpts/ch (non-interleaving mode)
Waveform capture rate (Max.):
Normal mode: 100,000 wfm/s
Sequence mode: 500,000 wfm/s
Trigger type: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Serial
Serial trigger and decode: I²C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I²S, MIL-STD-1553B, SENT, Manchester (decode only)
Measurement: 50+ parameters, statistics, histogram, trend, and track supported
Math:
2 traces
2 Mpts FFT, +, −, ×, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average
Supports formula editor
Data analysis: Search, Navigate, History, Mask Test, Digital Voltmeter, Counter, Waveform Histogram, Bode plot, and Power Analysis
Digital channel (optional): 16-channel; maximum sample rate up to 500 MS/s; record length up to 50 Mpts
Waveform generator: Single-channel built-in waveform generator, frequency up to 25 MHz, 125 MS/s sample rate, 16 kpts waveform memory
I/O: USB 2.0 Host ×3, USB 2.0 Device, 10 M / 100 M LAN, External trigger, Auxiliary output (TRIG OUT, PASS/FAIL)
Probe: One 500 MHz passive probe supplied for each channel
Display: 10.1 TFT-LCD with capacitive touch screen (1024×600)
