Bandwidth: 100 MHz
Rise Time: 3.5 ns
Input Channels: 2
Vertical Resolution: 8-bits
Vertical Sensitivity: 2 mV/div – 10 V/div
Bandwidth Limiting Filter: 20 MHz
Maximum Input Voltage: 400 Vpk, CAT I
Input Coupling: GND, DC 1 MΩ, AC 1 MΩ
Input Impedance: 1 MΩ || 18 pF
Sampling Rate: (Single Shot) 1 GS/s (interleaved), 500 MS/s (all channels)
Sampling Rate (Equivalent Time): 25 GS/s
Peak Detect Period: 10 ns
Memory Length: 1 Mpts/Ch
Maximum Memory: 2 Mpts
Timebase Range 2.5 ns/div - 50 s/div
Standard Probes: 10:1, 1:1
Triggers: Edge, Pulse Width, Video, Slope (Rise Time), Alternate
Measure: Amplitude, Average, Base, Burst Width, Cyclic RMS, + Duty Cycle, - Duty Cycle, Fall Time, Frequency, Max, Mean, Min, Overshoot, Peak-Peak, Period, Phase, Preshoot, Rise Time, RMS, Top, + Width, - Width.
Math : Add, Subtract, Multiply, Divide, FFT
Waveform Storage: 20 waveforms and 2 reference waveforms
Input/output Interfaces: USB USB host port for fash drives, USB device port for connecting to PC and printers
Display: Color 7.0 TFT-LCD, Wide QVGA; 480 x 234 pixels
Dimensions (HWD) 163 mm x 313 mm x 115.8 mm; 6.42" x 12.32" x 4.6"
Weight 2.78 kg; 6.10 lbs.
Power : 100 - 240 V AC

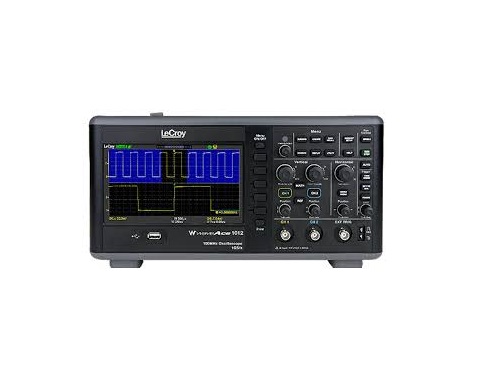

Manufaturer: Lecroy USA
