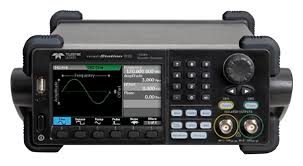

Lecroy WaveStation 3122 Function/Arbitrary Waveform Generator (120Mhz, 500MS/s, 2CH )
- Bandwidth: 120 MHz
- Channels: 2
- Waveforms: Sine, Square, Ramp, Pulse, Noise, Arbitrary: Stairup, Stairdown, Positive Pulse, Negative Pulse,
Up Ramp, Down Ramp, Sinc, Gaussian, LogFall, LogRise, Sqrt, TwoTone, etc
- Sine: 1 μHz - 120 MHz
- Square: 1 μHz - 50 MHz
- Pulse: 500 μHz - 40 MHz
- Triangle/Ramp: 1 μHz - 4 MHz
- Arbitrary Waveforms: 1 μHz - 40 MHz
- Modulation: AM, PM, FM, ASK, PSK and FSKduty-cycle square waveform
- External Clock: 10 MHz ± 1 kHz
- Sync Output: VOH (min) > 4.5 V, VOL (max) < 0.5 V; (IOL / IOH = 8 mA)
- Trigger Output: CMOS compatible
- External Trigger: CMOS compatible
- Output Amplitude - CH1: 1 mVpp - 20 Vpp
- Output Amplitude - CH2: 1 mVpp - 20 Vpp
4 mVpp - 10 Vpp (high impedance, > 10 MHz)
- Display: 4.3 inch TFT-LCD, 480 x 272, RGB
- Dimensions 105 mm x 261 mm x 344 mm (4.1” x 10.3” x 13.5”)
- Weight: 2.8 kg (6.1 lbs)
- Power: 100 - 240 Vrms (± 10%), 50 / 60 Hz)
- Included with Standard Configuration
+ Power Cable for the Destination Country
+ USB 2.0 Cable Type A to B (Black, 1 m)
+ USB to GPIB Converter
+ Getting Started Manual
+ Performance Certificate
+ Declaration of Conformity
+ WaveStation PC Software CD
+ Product Registration Card
