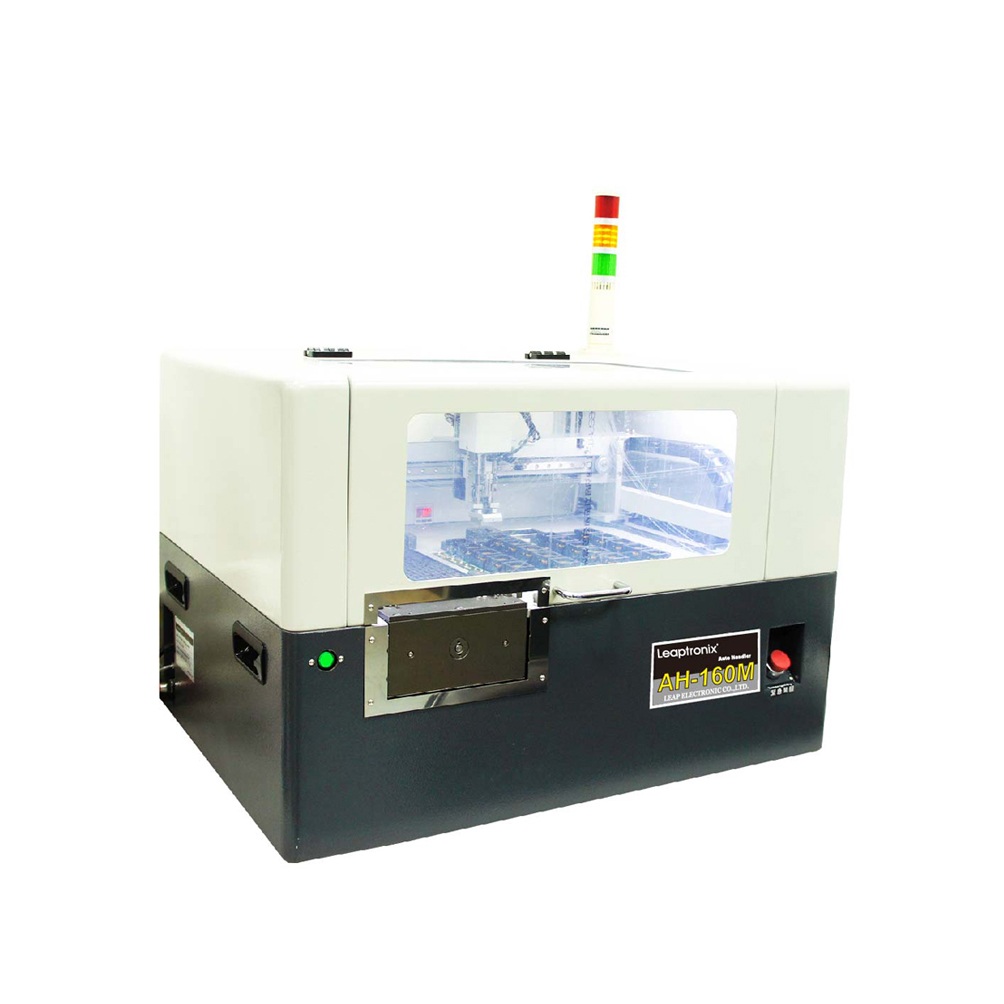

LEAPTRONIX AH-160M ໂປລແກລມ eMMC ອັດຕະໂນມັດ
Throughput: 550 U.P.H
* Transmission System:
Repeatability: X axis ±0.03mm, Y axis ±0.03mm, Z axis ±0.2mm, Bar axis ±0.01mm
Max.Stroke:X axis 400mm, Y axis 310mm, Z axis 18mm, Bar axis 5mm
Pick and place method: Single Vacuum Nozzles
* Position System:
Positioning : Preprocessor
Preprocissor Device Dimensions: 30 x 30mm
* Programming System:
Resident Programmer: SU-6808 eMMC Gang Programmer
Programming and Verify Speed: 22MB/s
Socket Site: 8~16 sockets
eMMC Version: 4.1/4.2/4.3/4.4/4.41/4.51
* Feeding system:
Auto Tray-in / out: JEDEC stander
* Physical Specifications
Dimensions: 520 x 700 x 550mm
Net Weight: 70KG
* PC System Requirements:
Operating System: Windows7 / Vista / XP (32bit & 64bit)
CPU: Core 2 Duo above
Memory: 2GB RAM above
Hard Disk: Main program 500 MB above, buffer 4GB above
Interface: USB 2.0 High Speed
* Operation Requirements:
Input Voltage: AC100V~240V, Single-phase, 3-wires
Input Frequency: 50 / 60Hz
Power Consumption: 200W(Max)
* Standard Accessories
Main unit x 1
CD(included driver and manual) x 1
USB cable x 1
AC cable x 1
