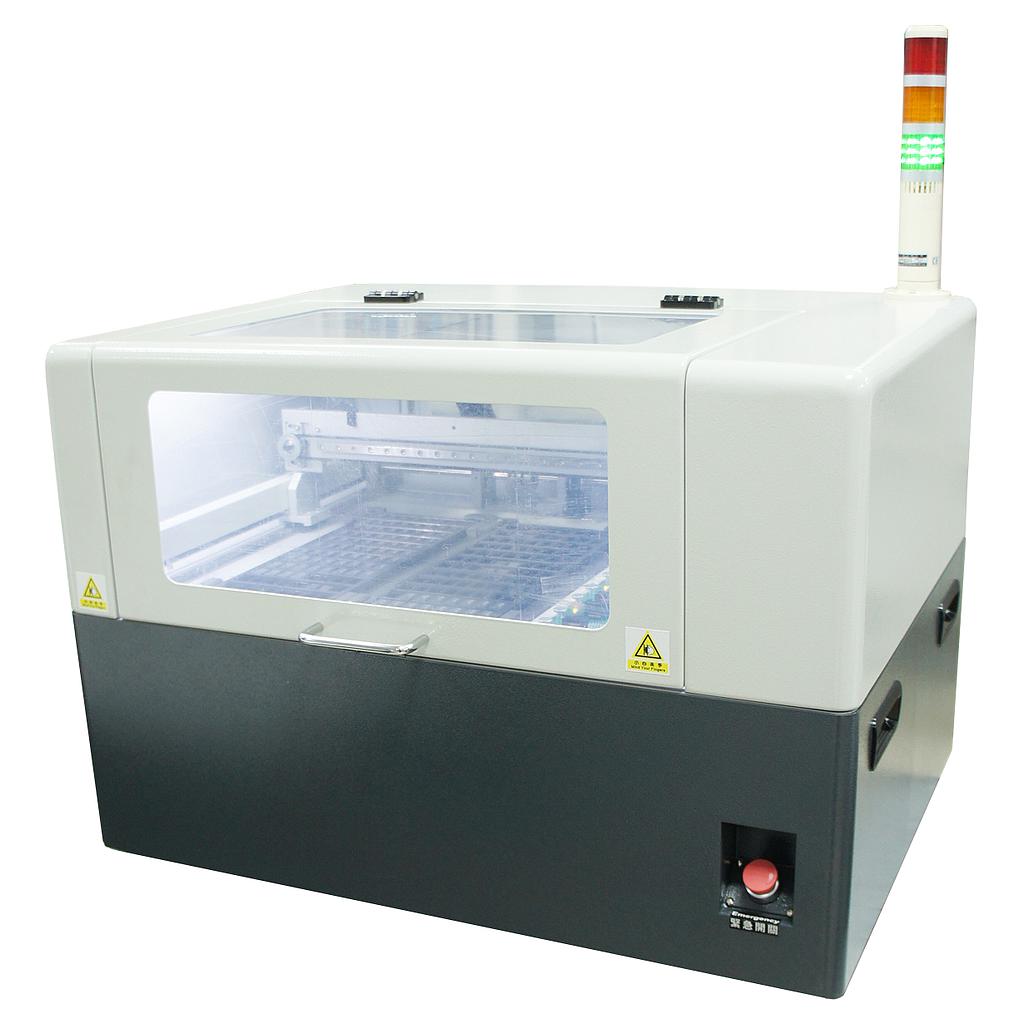

LEAPTRONIX AH-160B Customized Automated Programmer / Tester (550 U.P.H)
Throughput: 550 U.P.H
* Transmission System:
Repeatability: X axis ±0.03mm, Y axis ±0.03mm, Z axis ±0.2mm, Bar axis ±0.01mm
Max.Stroke:X axis 400mm, Y axis 310mm, Z axis 18mm, Bar axis 5mm
Pick and place method: Single Vacuum Nozzles
* Position System:
Positioning : Preprocessor
Preprocissor Device Dimensions: 30 x 30mm
* Programming System:
Resident Programmer: High Speed Gang Programmer
Socket Site: 4 sockets
Device supported: NOR Flash、NAND Flash、EEPROM .
File Formats Supported: Binary / Machine Code、Intel HEX、TEK HEX、Motorola HEX
* Feeding system:
Manural Tray-in / out: JEDEC stander
* Physical Specifications
Dimensions: 520(H) x 700(L) x 550(W)/mm
Net Weight: 70KG
* PC System Requirements:
Operating System: Windows7 / Vista / XP (32bit & 64bit)
CPU: Core 2 Duo above
Memory: 2GB RAM above
Hard Disk: 500 MB above, buffer 4GB above
Interface: USB 2.0 High Speed
* Operation Requirements:
Input Voltage: AC100V~240V, Single-phase, 3-wires
Input Frequency: 50 / 60Hz
Power Consumption: 200W(Max)
* Standard Accessories
AH-160B-I internal pneumatic or AH-160B-E external pneumatic x1
BeeHive204AP programmer x1
CD(included driver and manual) x 1
USB cable x 1
AC cable x 1
*Optional Module Adapter
TSOP, TSSOP, BGA, uBGA, VSOP, SOP, SSOP, PLCC, WSON, QFN
