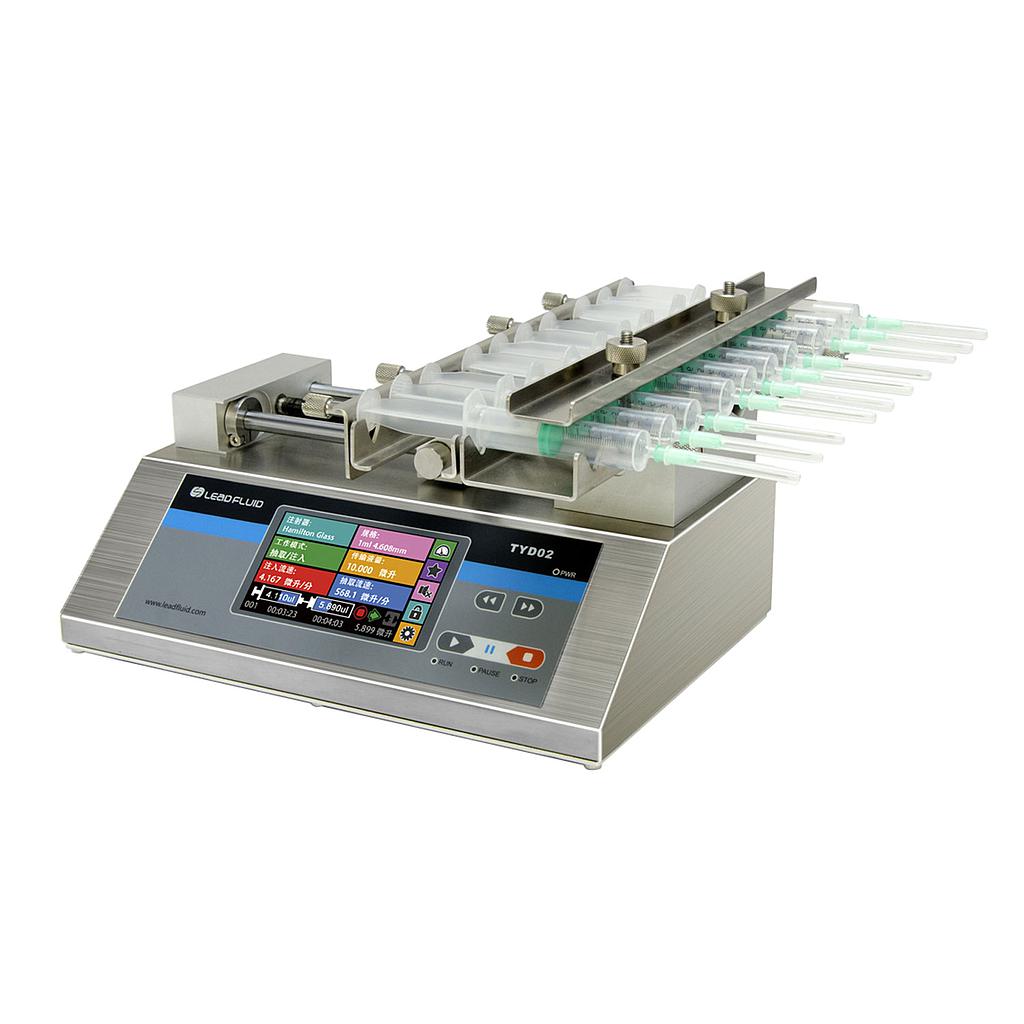

Leadfluid TYD02-10 Laboratory Syringe Pump (10uL-100mL/min, 10CH)

Name: Leadfluid TYD02-10 Laboratory Syringe Pump (10uL-100mL/min, 10CH)
Brand: Leadfluid
Availability: OutOfStock

ຜູ້ຜະລິດLeadfluid(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

ModelTYD02-10

ຕົ້ນກຳເນີດChina

ການຮັບປະກັນ12 ເດືອນ

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Specifications

• Syringe size: 10 ul – 10 ml;

• Work mode: infusion, withdraw, infusion/withdraw, withdraw/infusion, continuous mode;

• Channel number: 10;

• Stroke of pump: 140 mm;

• Pusher advance per microstep: 0.156 um/ustep;

• Linear speed: 1 um/min – 150 um/min;

• Linear resolution: 1 um/min;

• Linear travel accuracy: error <± 0.35% (＞30% of pump stroke);

• Linear force: maximum rated: > 20KGF;

• Thrust regulation: 1-100% arbitrary adjustable.

• Syringe selection: built-in main manufacturers, the main model syringe to choose;Can use custom syringe, direct input syringe size& diameter;

• Flow calibration: through the calibration procedure to obtain more accurate fluid volume;

• Display: 4.3 -inch color LCD, 480 * 272 resolution, color 65 k;With screen display and transfusion volume, quantity of liquid, flow, operation direction, syringe specification, etc.;Animation display operation status;

• Operation mode: touch screen + button;

• Power-off memory: storing the running parameters automatically.;

• Other features: pause and stop;The sound tip;The lock parameters;Fast forward and retreat quickly;

• Control signal input: 1 way down along the priming, 1 way down along the trigger to stop;

• Communication interface: RS485, MODBUS protocol;

• Applicable power: AC90-264 – v / 20 w;

• working temperature: 5 to 40 ℃;

• Relative humidity: < 80% RH;

• Dimension: 290 * 280 *175 mm

• Weight: 5.2 kg
