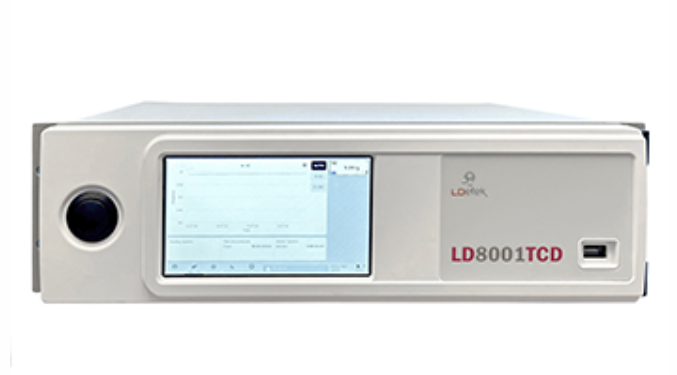

LDetek LD8001-TCD-BX-C2-D0-E0-F1 ອຸປະກອນວິເຄາະແກັດທີ່ມີລະບົບບາຍເນີ (50 – 200 sccm)
Sample Gas: Contact Engineer to select sample gas
Output: No Output
Serial Communication: No serial Interface
Intergrated Sampling system: 1 sample + zero + span
Detector type: Thermal conductivity detector (TCD)
Range: Ppm to % (application dependant)
Accuracy: Better than 3% FS
Standard features:
Manual or autoranging (user selectable)
Microprocessor controlled
Touchscreen 7 inches HDMI TFT display
Self diagnosis system with auto-resolve alarm
LAN/Web control
Alarm historic:
Digital outputs for remote monitoring: (all dry relay contacts)
System status (1 output)
Range in use (3 output)
Calibration in use (1 output)
Gas connections: Sample: 1/8” compression fittings Vent: 1/8” compression fitting
Sample flow: 50-200 sccm
Reference gas: 50-200 sccm
Sample gas operating pressure: 3 to 30 psig
Operating temperature: 10 °C to 45 °C
Supply: 115 VAC, 50 – 60 Hz or 220 VAC, 50 – 60 Hz
Power consumption: Maximum 40 watts
Weight: 30 lbs (14 kg)
Enclosure type: 3U rackmount
Ingress protection
IP20 in accordance with IEC 60529
Enclosure finish: RAL7030 powder coat
Certification: In compliance with EMC directives: IEC 61000-4-3: 2020, IEC 61000-4-6: 2013, IEC 61000-4-2: 2008, IEC 61000-4-4: 2012, IEC 61000-4-5: 2014 A1: 2017, IEC 61000-4-8: 2009, IEC 61000-4-11: 2020 for immunity & CISPR 32: 2015 A1: 2019, FCC Part 15, Subpart B: 2021 for emissions.
