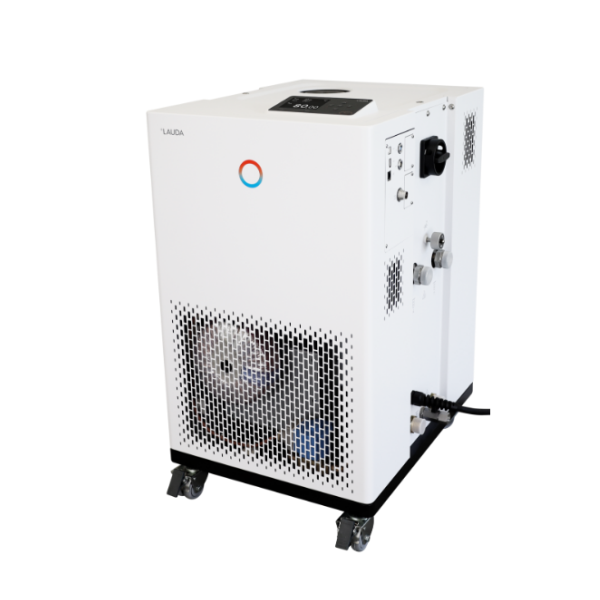

Lauda IN 8 XTW Integral Process Thermostat (25 ~ 320°C, 3.6L ~ 9.8L)
Working temperature range: 25 ... 320°C
Ambient temperature range: 5 ... 40 °C
Temperature stability: 0.1 ± K
Heater power max.: 8 kW
Max. power consumption: 9 kW
Current consumption: 13.5 A
Max. discharge pressure: 3.1 bar
Max. pump flow pressure: 60 L/min
In / Outlet connection thread (outside): M30 x 1.5
Inlet/outlet hose size: 3/4″
Min. filling volume: 3.6 L
Max. filling volume: 9.8 L
Water cooling connection thread (inside): 3/4 ″
Recommended cooling water temperature: 15 °C
Cooling water flow rate: 11 L/min
Pressure difference cooling water min.: 3 bar
Maximal pressure cooling water: 10 bar
Dimensions (WxDxH): 430 x 550 x 760 mm
Weight: 85 kg
Noise level: 52 dB(A)
Power supply: 400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz
