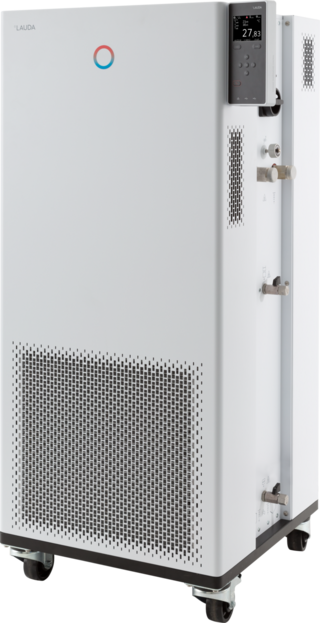

Lauda IN 280 XTW Integral Process Thermostat (-80 ... 220 °C, 4.8L ~ 17.2L)
Working temperature range: -80 ... 220 °C
Ambient temperature range: 5 ... 40 °C
Temperature stability: 0.05 ± K
Heater power max.: 4 kW
Max. power consumption: 9 kW
Current consumption: 13.5 A
Max. discharge pressure: 3.1 bar
Max. pump flow pressure: 65 L/min
In / Outlet connection thread (outside): M30 x 1.5
Min. filling volume: 4.8 L
Max. filling volume: 17.2 L
Water cooling connection thread (inside): 3/4 ″
Recommended cooling water temperature: 15 °C
Cooling water flow rate: 2.7 L/min
Pressure difference cooling water min.: 0.8 bar
Maximal pressure cooling water: 10 bar
Dimensions (WxDxH): 560 x 550 x 1325 mm
Weight: 200 kg
Noise level: 62 dB(A)
Power supply: 400 V; 3/PE; 50 Hz & 460 V; 3/PE; 60 Hz
