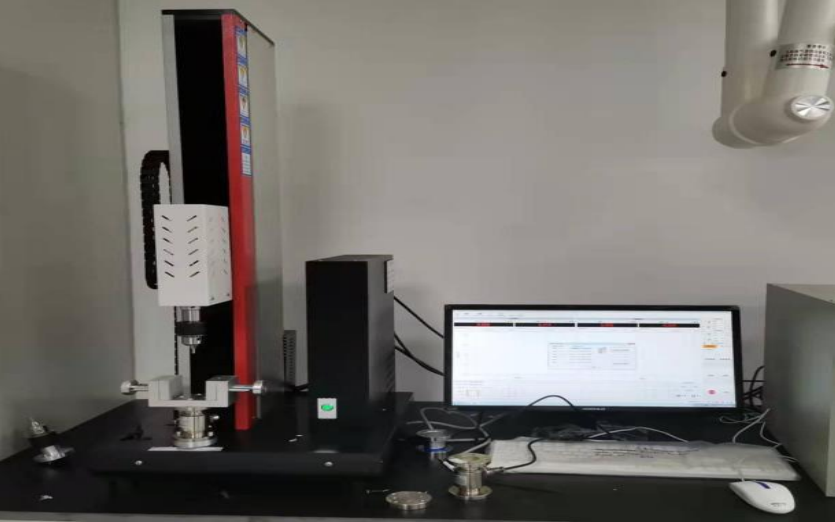

Laryee TL5005 Bone Screw Tester (0-5N.m; 1r / minute～ 30r / minute)
1. Unit: N•m
2. Resolution: 0.001N.m
3. Torque range: 0-5N.m
4. Torque sensor accuracy class: less than 0.5%F.S.
5. Speed accuracy: ±0.01mm/min
6. Axial force Sensor: 500N
7. Pressure sensor accuracy grade: less than 0.5%F.S.
8. Pressure sensor resolution: 0.001N
9. Linear displacement sensor: range over 50m
10. Displacement sensor accuracy class: less than 0.5%F.S.
11. Displacement sensor resolution: 0.01mm
12. Torsion angle sensor: 99999°
13. Torsion angle accuracy: ±0.2°
14. Torsion speed: Any choice within 1r/min～30r/min.
15. Effective stroke: 400±10mm (can be increased according to demand)
16. Torque resolution 1/±100000F.S
17. Relative error of torque indication ≤±0.2%;
18. Torsion angle resolution 0.001°
19. Torsion angular velocity Relative error within ±0.5% of the set value
20. Coaxiality of the two chucks≤￠0.2mm
21. Machine power≈0.4kW
22. Power supply voltage～220V±10% 50Hz (reliable grounding required)
