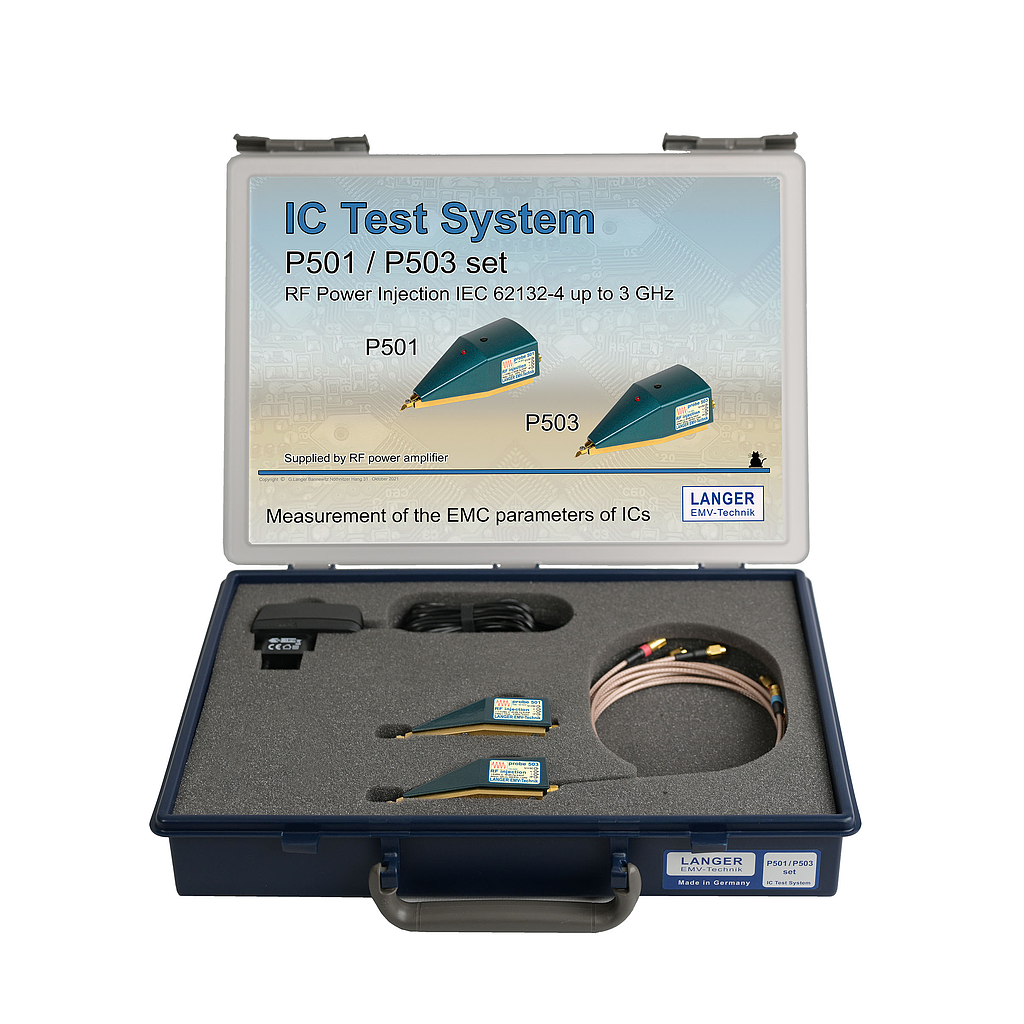

LANGER EMV-Technik P501 / P503 set ການສີດພະລັງງານ RF (up to 3 GHz)

Scope of delivery

1x P501, DPI Coupling Network up to 3 GHz, 50 V

1x P503, DPI Coupling Network up to 1 GHz, 50 V

1x SMA-SMA 1 m ds, SMA-SMA Double-Shielded Measurement Cable

2x SMA-SMB 1 m ds, SMA-SMB Double-Shielded Measurement Cable

1x NT FRI EU, Power Supply Unit

1x P500 case, System Case

1x P500 qg, P500 Set Quick Guide

1x P500 m, P500 Set User Manual

Short description

The P501/P503 probe set is used for conducted measurements of immunity according to IEC 62132-4. The gained knowledge of immunity parameters allows the IC optimization as well as the definition of the application requirements.

Available DPI couple networks (P501, P503) allow the RF coupling with different frequency ranges
