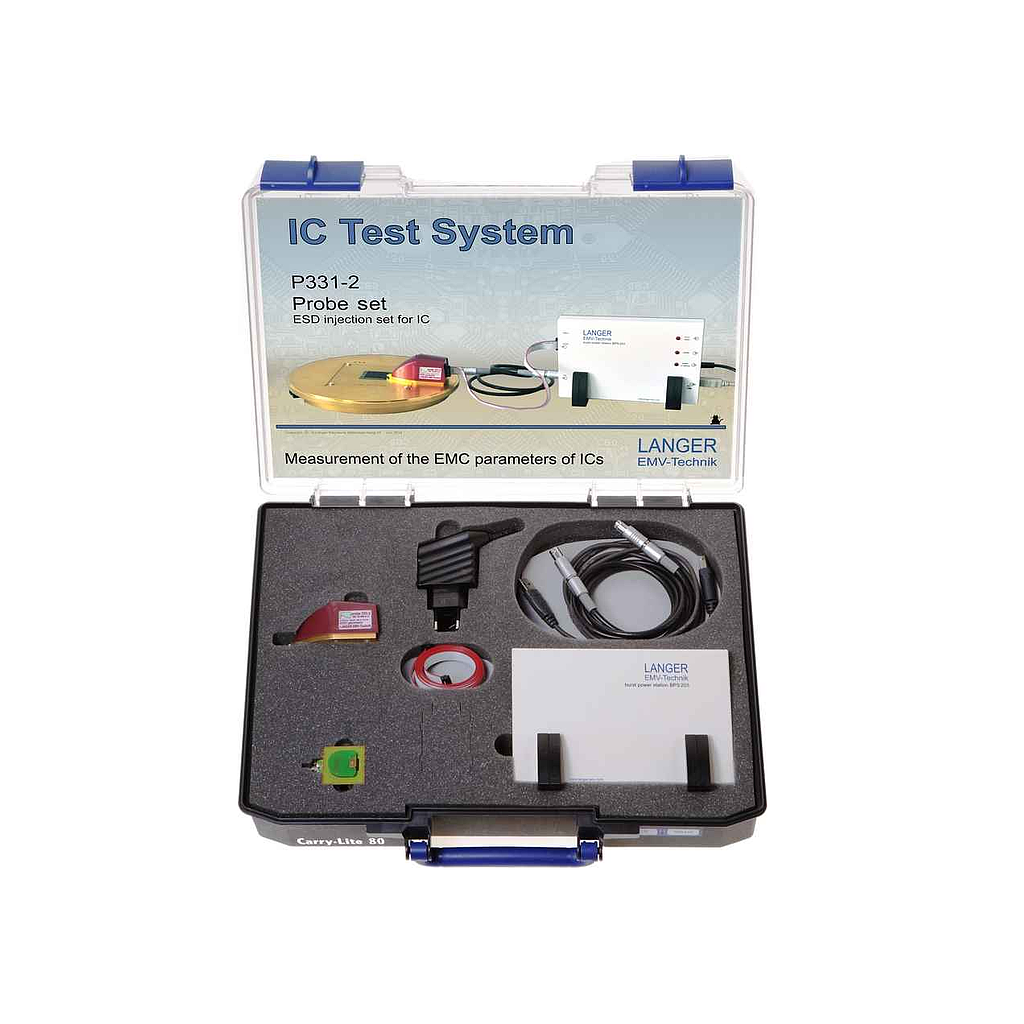

LANGER EMV-Technik P331-2 set ການສັກຢາ ESD Pulse

Scope of delivery

1x P331-2, ESD Generator

1x BPS 203, Burst Power Station

1x BPS 203-Client, Control Software

1x SM 02-01, Shunt 0,1 Ohm

1x SMA-SMB 1 m, SMA-SMB Measuring Cable

1x HV FI-FI 1 m, High-Voltage Cable, Fischer-Fischer

1x FBK 12P 1m, Control Cable

1x USB-AB, USB Cable Type A-B

1x NT Ex EU, Power Supply Unit

1x P331 acc, Accessories

1x P331 case, System Case

1x P331 m, P331 Set User manual

Short description

The P331-2 probe set is used for conducted coupling of ESD pulses into ICs. The P331-2 probe sizing orientates itself by mechanisms of the ESD coupling into electronic assemblies (according to IEC 61000-4-2 / HMM). The BPS 203 burst power station supplys and controls the probe.
