LANGER EMV-Technik P202 / P302 L-EFT set Pulse Injection Langer Pulses (1.5/5 ns and 1.5/20 ns)

Scope of delivery

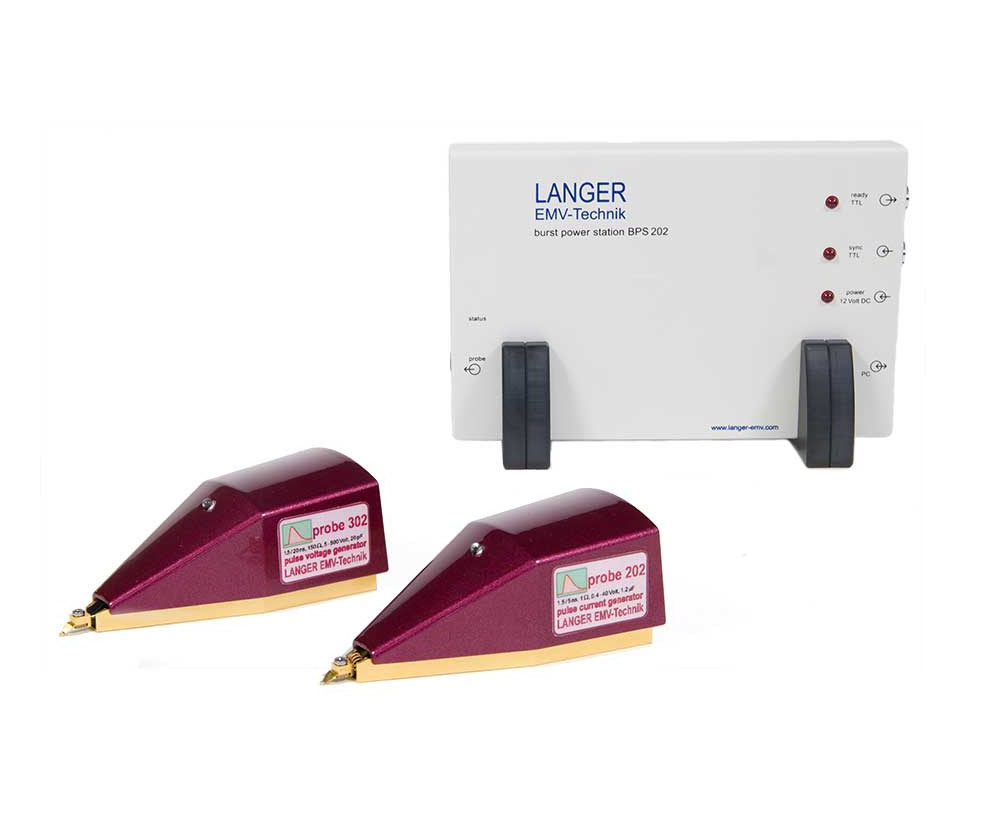

1x P202 L-EFT, Pulse Current Generator Langer Pulse 1.5/5 ns

1x P302 L-EFT, Pulse Voltage Generator up to 500 V Langer Pulse 1.5/20 ns

1x BPS 202, Burst Power Station

1x BPS 202-Client, BPS 202-Client Software / USB

1x NT Ex EU, Power Supply Unit

1x P200 / P300 case, System Case

1x P202 / P302 m, User manual

Short description

The P202 and P302 pulse generators are used to determine an IC’s pulse immunity. During a Burst/ESD device test the generated pulse-shaped disturbances reach any ICs in the device under test. To individually test ICs, the pulse generators from LANGER EMV-Technik GmbH simulate these reduced disturbances and make it possible to analyse the immunity of each individual IC pin/ball during function.

The P202 pulse-current source was designed based on the mechanisms of magnetic-field disturbance coupling in electronic devices.

The P302 pulse-voltage source was designed based on the mechanisms of electric-field disturbance coupling in electronic devices.

For automated tests the generators are used with the IC Tester ICT1.

The P202 and P302 pulse generators can only be operated with the BPS 202 burst power station.

Datasheet

Manual
