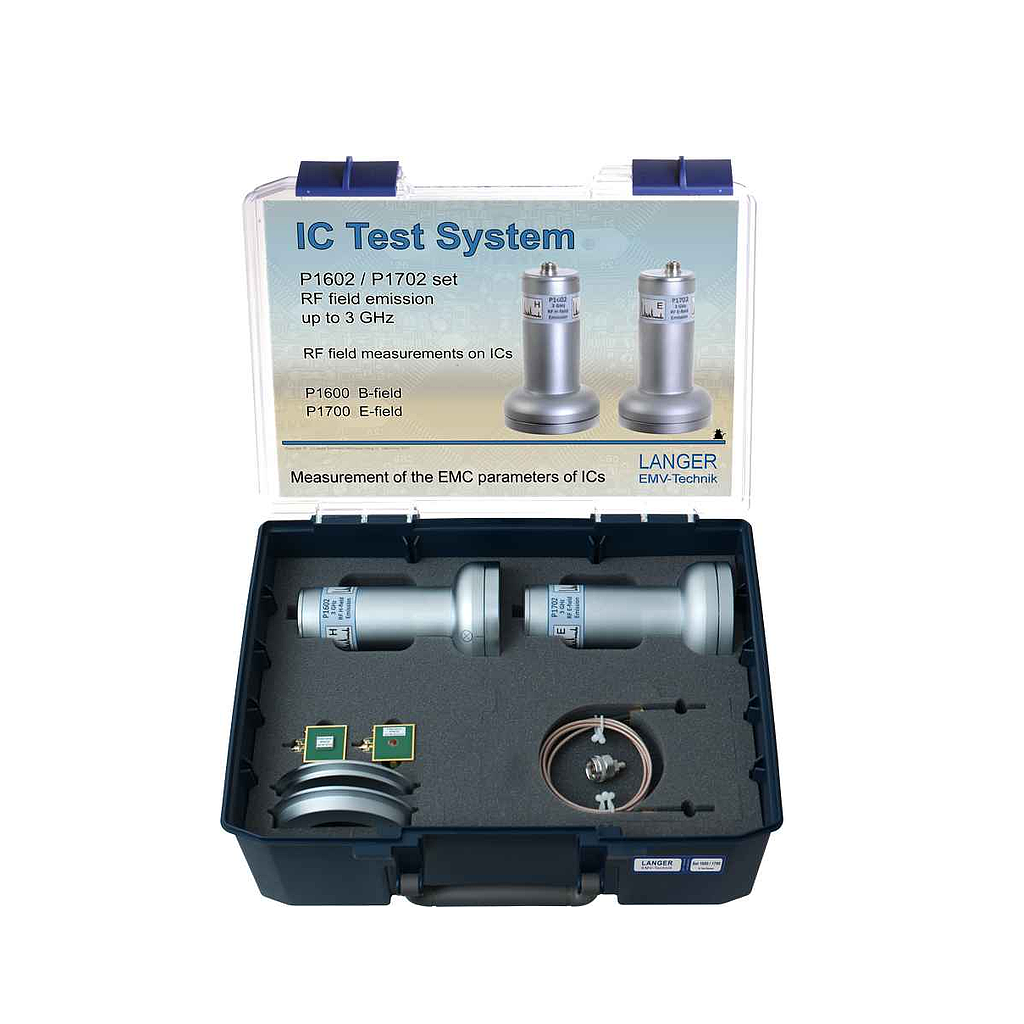

LANGER EMV-Technik P1602 / P1702 set ການປ່ອຍອາຍພິດພາກສະຫນາມ RF (up to 3 GHz)

Scope of delivery

1x P1602, RF Magnetic Field Probe

1x P1702, RF E-Field Probe

1x CS-ESA set, ChipScan-ESA Software / USB

1x EPM 02, dE/dt Field Meter

1x BPM 02, dB/dt Field Meter

1x D70 h03, Spacer Ring, 3 mm

1x D70 h10, Spacer Ring, 10 mm

1x FKE 30, Field Chamber Insert

1x SMA-SMA 1 m, SMA-SMA Measuring Cable

1x SMA-SMB 1 m, SMA-SMB Measuring Cable

1x N-SMA, Adapter

1x P1600 / P1700 case, System Case

1x P1600 / P1700 m, P1602 / P1702 Set User Manual

Short description

The RF field emission probe set consists of a magnetic field probe and an electric field probe. They are used to measure the respective radiated near fields of an IC in operation. The measured data help to assess separately the emissions of an IC according to field types.

Measurements and all calculations are carried out with the software ChipScan-ESA.
