LANGER EMV-Technik P1402 / P1502 set RF Field Coupling (up to 3 GHz)

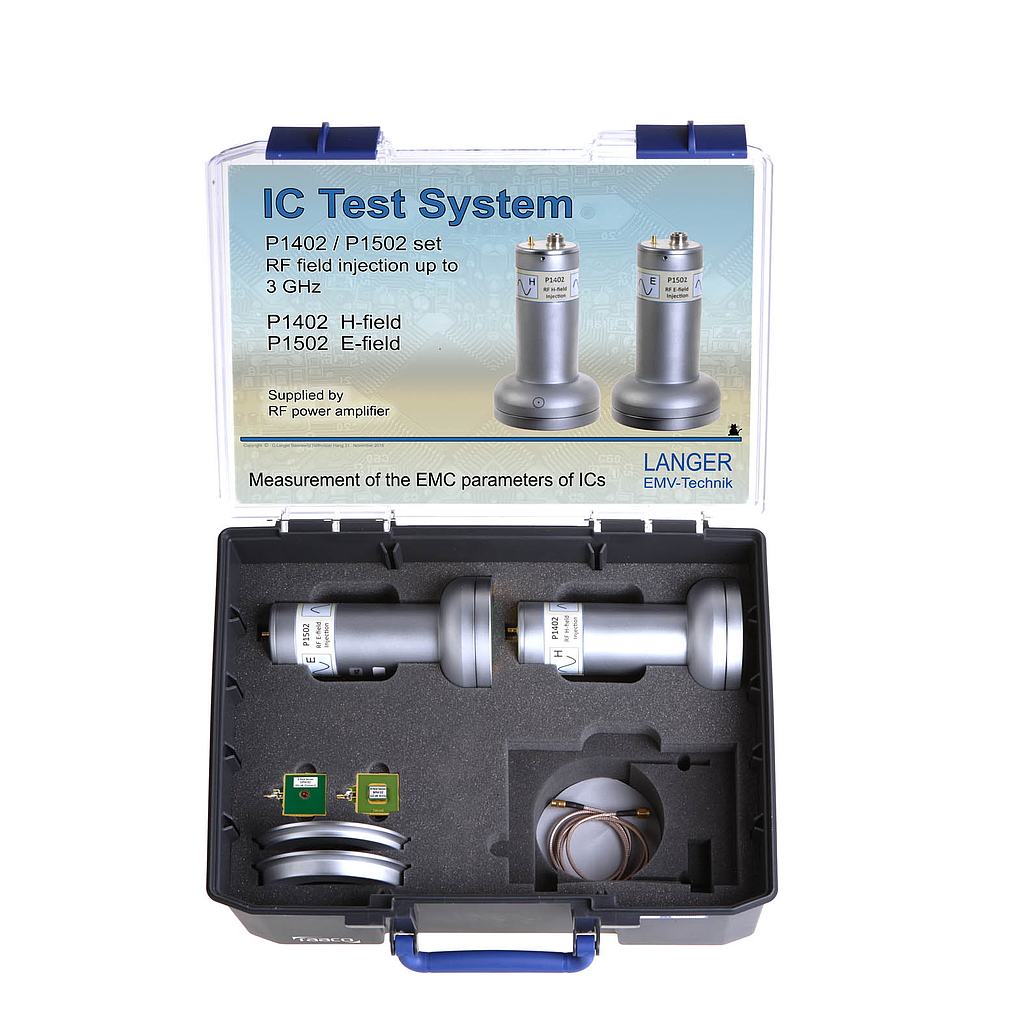

Scope of delivery

1x P1402, RF Magnetic Field Source up to 3 GHz

1x P1502, RF E-Field Source up to 3 GHz

1x EPM 02, dE/dt Field Meter

1x BPM 02, dB/dt Field Meter

1x D70 h03, Spacer Ring, 3 mm

1x D70 h10, Spacer Ring, 10 mm

2x SMA-SMB 1 m, SMA-SMB Measuring Cable

1x FKE 30, Field Chamber Insert

1x P1402 / P1502 case, System Case

1x P1400 / P1500 m, P1401 / P1501 Set User Manual

Short description

The RF magnetic field injection up to 3 GHz probe set tests the ICs in terms of their immunity under the influence of RF magnetic fields (P1402) or RF-E-field (P1502).

These analysises are the basis for an EMC compatible development of ICs. Furthermore, the detemined RF parameter are helpful for the IC user to develop optimal IC applications.

In addition to the test setup an ICE1 test environment, a RF generator and a power amplifier are needed.

Field sources can only be run in connection with a short circuit- and open circuit proof power amplifier.
