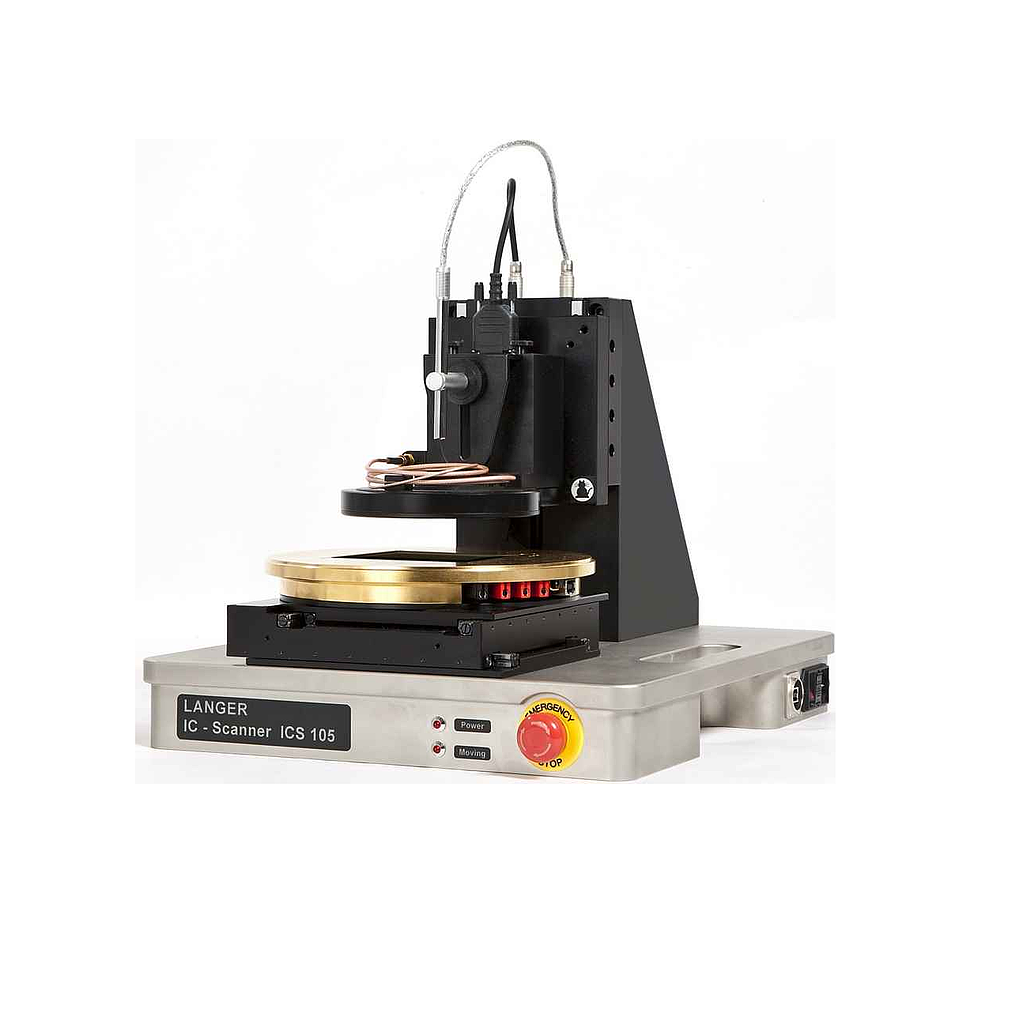

LANGER EMV-Technik ICS 105 set IC Scanner 4-Axis Positioning System

Technical parameters

Supply voltage: 110 / 230 V

Interface: USB

Max. traverse distance: (50 x 50 x 50) mm / α-Rotation ±180°

Min. positioning distance: (10 x 10 x 10) µm / α-Rotation 1°

Positioning speed: (10 x 10 x 5) mm/s / α-Rotation 90°/s

Weight: 23 kg

Sizes (L x W x H): (350 x 400 x 420) mm

Scope of delivery

1x ICS 105, 4-Axis Positioning System

1x CS-Scanner, ChipScan-Scanner Software / USB

1x GND 25, Ground Plane

1x DM-CAM, Digital Microscope Camera

1x ICS Flight case, ICS Flight Case

1x ICS 105 m, ICS 105 User Manual

Short description

The ICS 105 IC scanner allows for measurements of high-frequency near fields above ICs. Depending on the used ICR near-field microprobe magnetic or electric fields can be measured with a measuring resolution of 50 to 100 µm. The probe can also be automatically rotated to determine the magnetic field’s direction.

Optionally the ICS 105 scanner can be used for measurements above small assemblies in combination with UH-DUT universal holder and SH 01 probe holder.

The IC scanner can be set up for ESD or EFT immunity tests on ICs in a few simple steps.
