LANGER EMV-Technik ICR 03 set ຊຸດໄມໂຄຣໂປຣບີ້ໃກ້ພື້ນທີ່

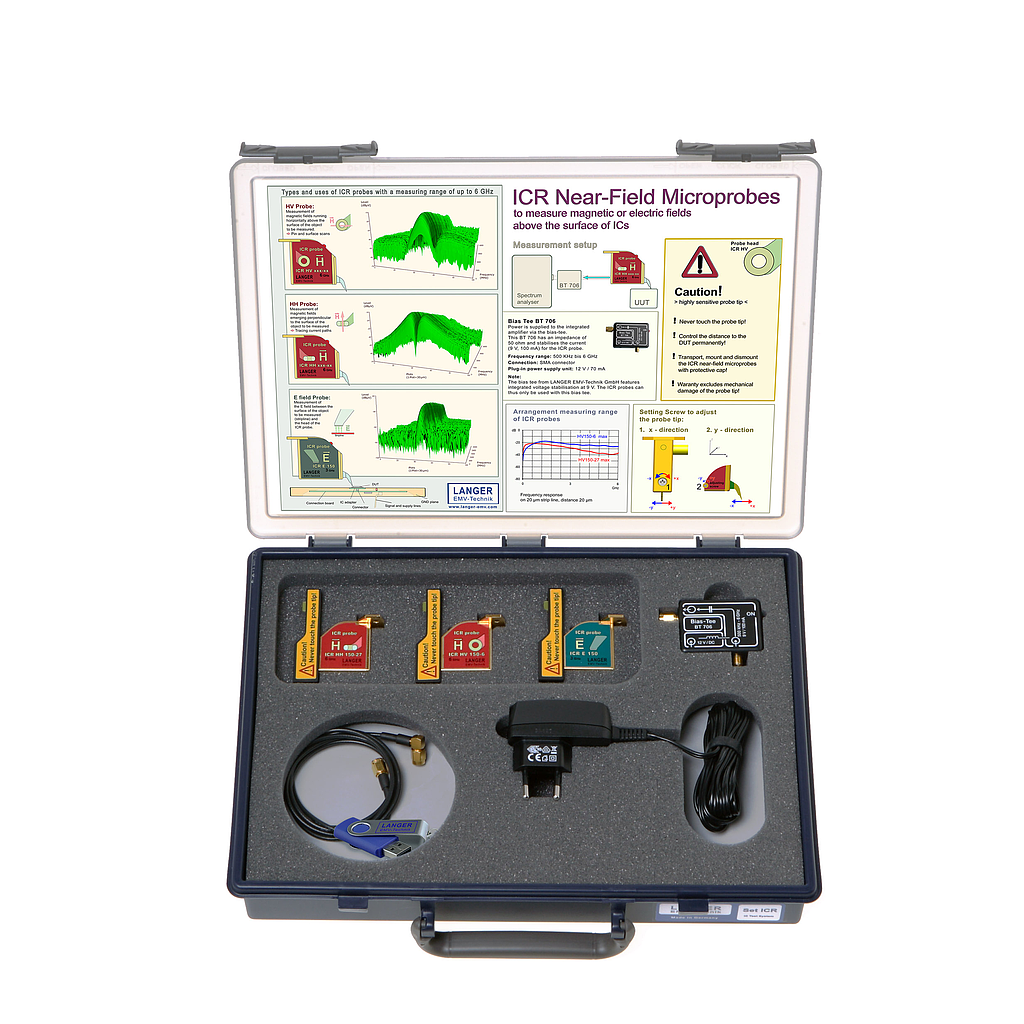

Scope of delivery

1x ICR Probe, Your selection from our range of near-field microprobes

1x ICR Probe, Your selection from our range of near-field microprobes

1x ICR Probe, Your selection from our range of near-field microprobes

1x BT 706, Bias Tee for Langer probes

1x SMA-SMA RA, Cable SMA-SMA, right angle

3x ICR-C, ICR Certificate

3x ICR Corr, Correction Curves ICR / USB

1x NT FRI EU, Power Supply Unit

1x ICR case3, System Case

Short description

The ICR 03 set contains three of our ICR near-field microprobes (magnetic or E field) of your choice.

The probes are used to measure magnetic or electric near fields with extremely high resolution and sensitivity. Optimal is a distance of < 1 mm to the measuring object. The probe head is equipped with either a vertical (HV) or horizontal (HH) measuring coil.

A preamplifier is integrated in every probe, which is powered by the BT 706 bias tee.
