LANGER EMV-Technik E1 set ລະບົບພັດທະນາພູມຄຸ້ມກັນ

Technical parameters

S21 optical sensor

Transmission rangeDC...10 Mbps

Optical fibre connector2.2 mm Ø

Supply voltage(3-5) V

Current input10 mA

SGZ 21 burst Generator

Pulse parameter

Rise timeca. 2 ns

Tail timeca. 10 ns

Peak valuesca. 0...1500 V

Optical input

Optical fiber2.2 mm

Max. frequency5 MHz

Min. pulse width100 ns

Supply voltage12 V / 200 mA

Sizes (L x W x H)(154 x 100 x 62) mm

Scope of delivery

1xSGZ 21, Burst Generator

1xS21, Optical Sensor (10 Mbps)

1xBS 02, Magnetic Field Source

1xBS 04DB, Magnetic Field Source

1xBS 05D, Magnetic Field Source

1xBS 05DU, Magnetic Field Source

1xES 00, E-Field Source

1xES 01, E-Field Source

1xES 02, E-Field Source

1xES 05D, E-Field Source

1xES 08D, E-Field Source

1xMS 02, Magnetic Field Probe

1xE1 acc, Accessories

1xNT FRI EU, Power Supply Unit

1xE1 case, System Case

1xE1 m, E1 Set User Manual

Short description

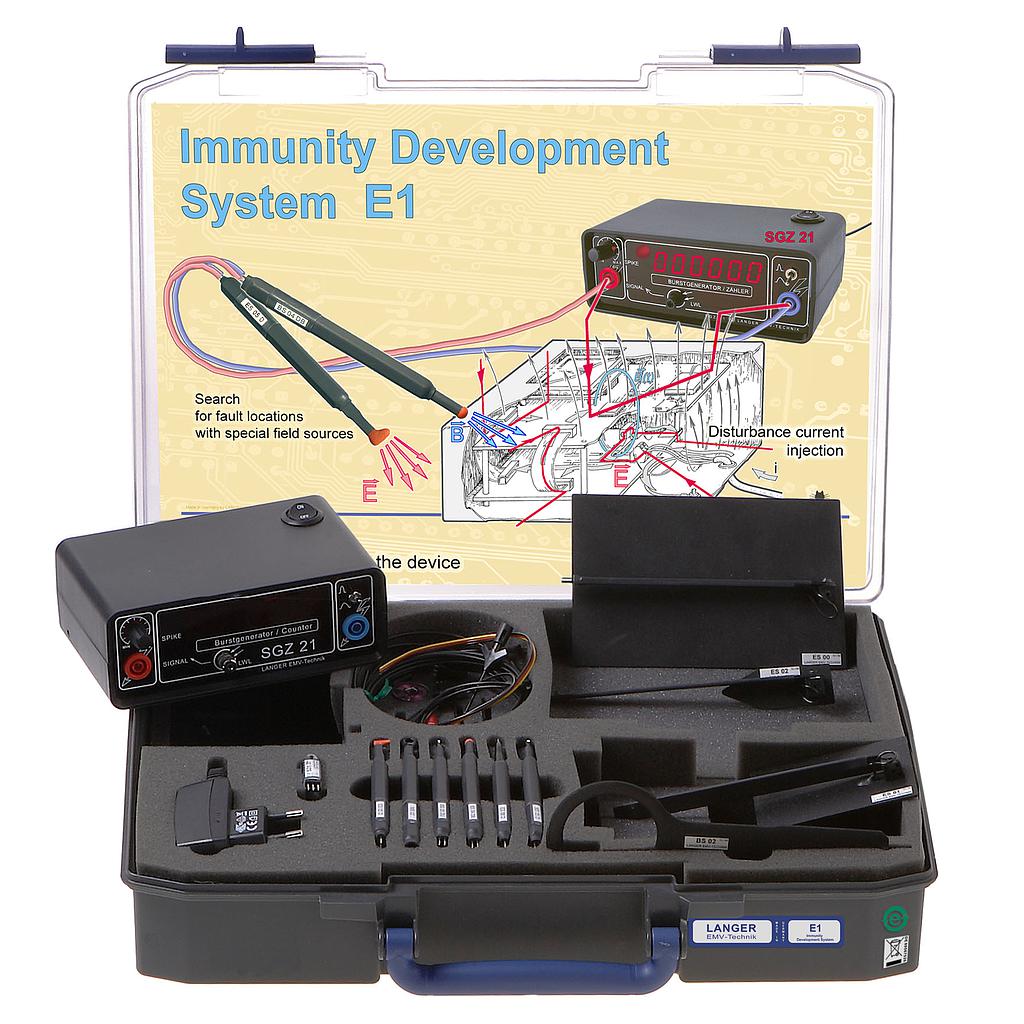

The E1 is a set of EMC tools used for EMI suppression in printed circuit boards during the development phase. The developer can use the E1 set to quickly identify the causes of burst and ESD interference. This allows the developer to design suitable measures to solve the causes of the interference. It can also be used to test the effectiveness of the measures taken. The E1 test set-up is small and fits easily on a developer’s desk. The E1 set user manual describes EMC mechanisms and provides detailed descriptions of basic measuring strategies for interference suppression in printed circuit boards. The E1 set includes a generator to generate burst and ESD disturbances.
