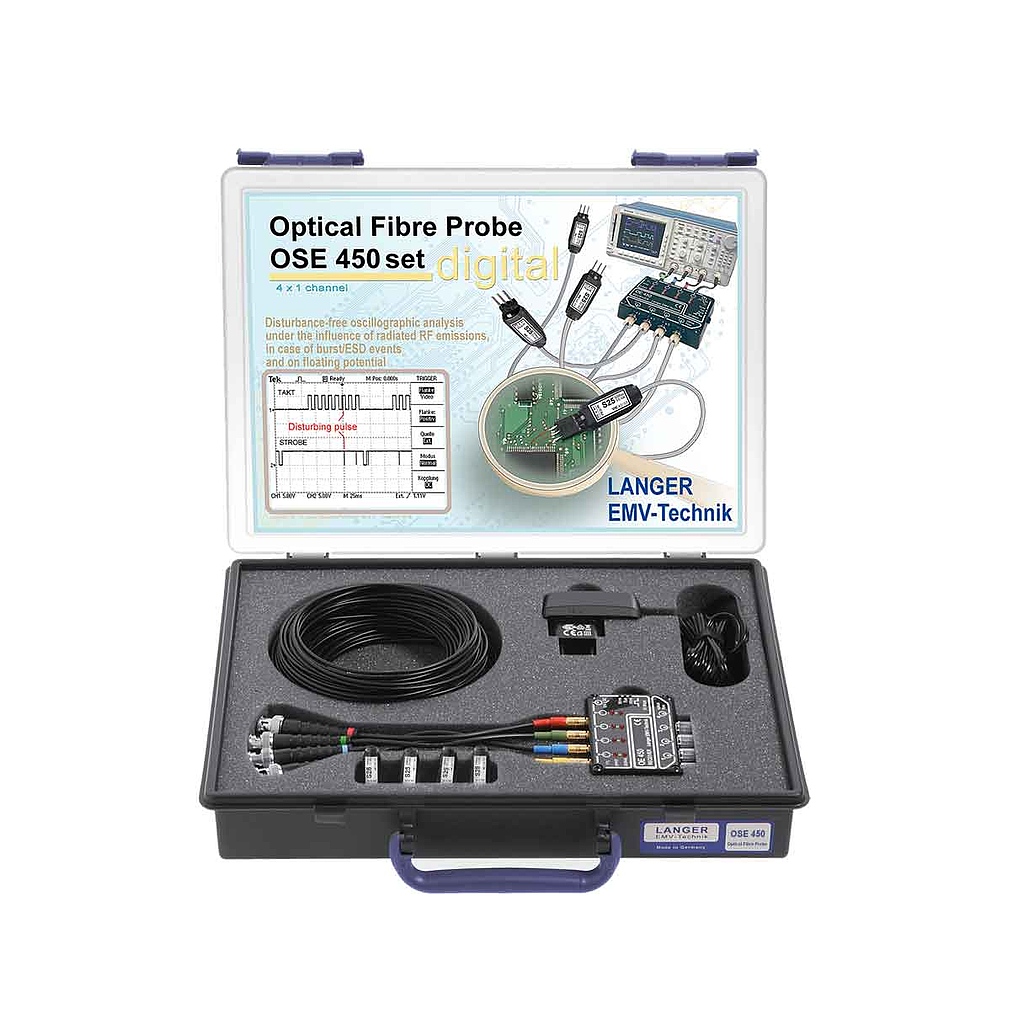

LANGER EMV-Technik OSE 450 set Optical Fiber Probe 4-Channel, 50 Mbps

Technical parameters

OE 450 Optical Receiver

Transmission range: DC ... 50 Mbps

Optical fibre connector: 4xØ 2.2 mm

Supply voltage: 12 V / 100 mA

Connector - output: 4xBNC-Stecker, 5 V HCMOS

S25 Optical Sensor

Transmission range: DC ... 50 Mbps

Optical fibre connector: Ø 2.2 mm

Supply voltage: 3 V ... 5 V

Current input: 30 mA

Scope of delivery

1x OE 450, Optical Receiver

4x S25, Optical Sensor (50 Mbps)

4x LWL Ø 2.2 mm 6m, Optical Fiber Single 6m

1x NT FRI EU, Power Supply Unit

1x OSE 450 acc, Accessories

1x OSE 450 case, System Case

1x Digital m, OSE User Manual

Short description

The OSE 450 set is used to transmit digital signals from a disturbed device under test. It consists of four single sensors which are used to detect four digital signals inside the device under test and is connected to the oscilloscope via four fiber optical cables and one receiver.

Within the device under test, the sensor transforms measured logical signals into optical signals.

The optical signals are transmitted to the optical receiver via a fibre optical cable. These can be visualized with an oscilloscope or can be used for controlling other devices.

The system is suitable for signal monitoring from a anechoic chamber, a shielded RF chamber, or in an EMC test lab. Hard- and software can be EMC-optimized.
