LANGER EMV-Technik OSE 150-1 set Optical Fiber Probe 1-channel, 50 Mbps

Technical parameters

OE 150 Optical Receiver

Transmission range: DC ... 50 Mbps

Optical fibre connector: Ø 2.2 mm

Supply voltage: 12 V / 100 mA

Optical fibre length: 1 m - 20 m

Connector - output: BNC-Stecker, 5 V HCMOS

S25 Optical Sensor

Transmission range: DC ... 50 Mbps

Optical fibre connector: Ø 2.2 mm

Supply voltage: 3 V ... 5 V

Current input: 30 mA

Scope of delivery

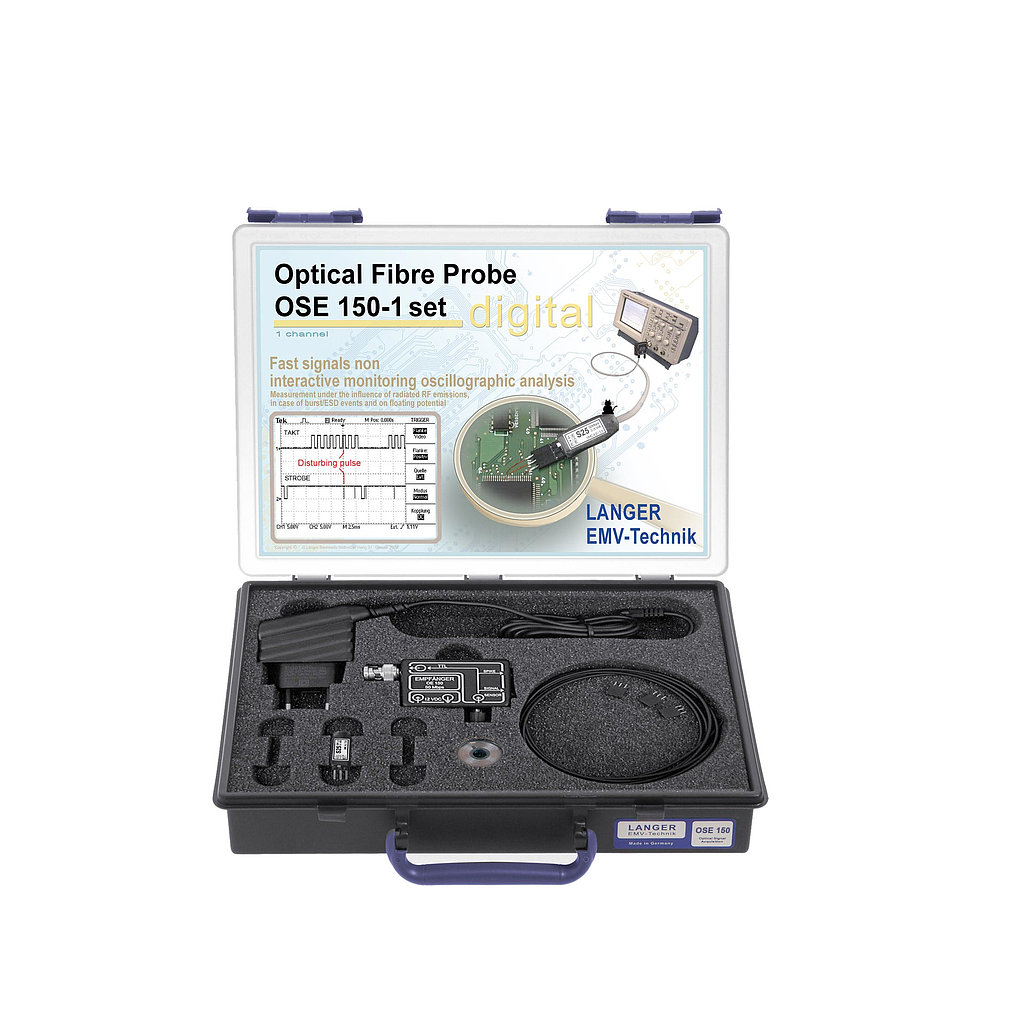

1x OE 150, Optical Receiver

1x S25, Optical Sensor (50 Mbps)

1x LWL Ø 2.2 mm 1.5 m, Optical Fiber Single 1.5 m

1x NT FRI EU, Power Supply Unit

1x OSE 150-1 acc, Accessories

1x OSE 150-1 case, System Case

1x Digital m, OSE User Manual

Short description

The OSE 150-1 set is used to transmit digital signals from a disturbed device under test (EFT/burst interference). The set consists of one sensor which detects logical signals and transforms them into optical signals. The light signals are transmitted to the optical receiver via a fiber optical cable. The receiver transforms them into digital electric signals. These can be visualized with an oscilloscope or can be used for the control of other devices.

The light signals are transmitted to the optical receiver via a fiber optical cable. The system is suitable for signal monitoring from a anechoic chamber, a shielded RF chamber or in an EMC test lab. The optical transmission system allows EMC-optimizing of hard- and software, because disturbed signals can be easily detected.
