LANGER EMV-Technik OB 100 set Opto-Box 100 LIN ແລະ CAN

Technical parameters

Operating time with charged internal batteries: up to 1 week (depending on operating mode)

Supply voltage: 12 V (max. 25 V)

max. current input at 12 V: 250 mA (while charging internal battery); 45 mA (without charging internal battery)

Optical fibre connector: 2 x 2.2 mm Ø

Optical fibre length: 20 m (6 m at 1 Mbit/s CAN)

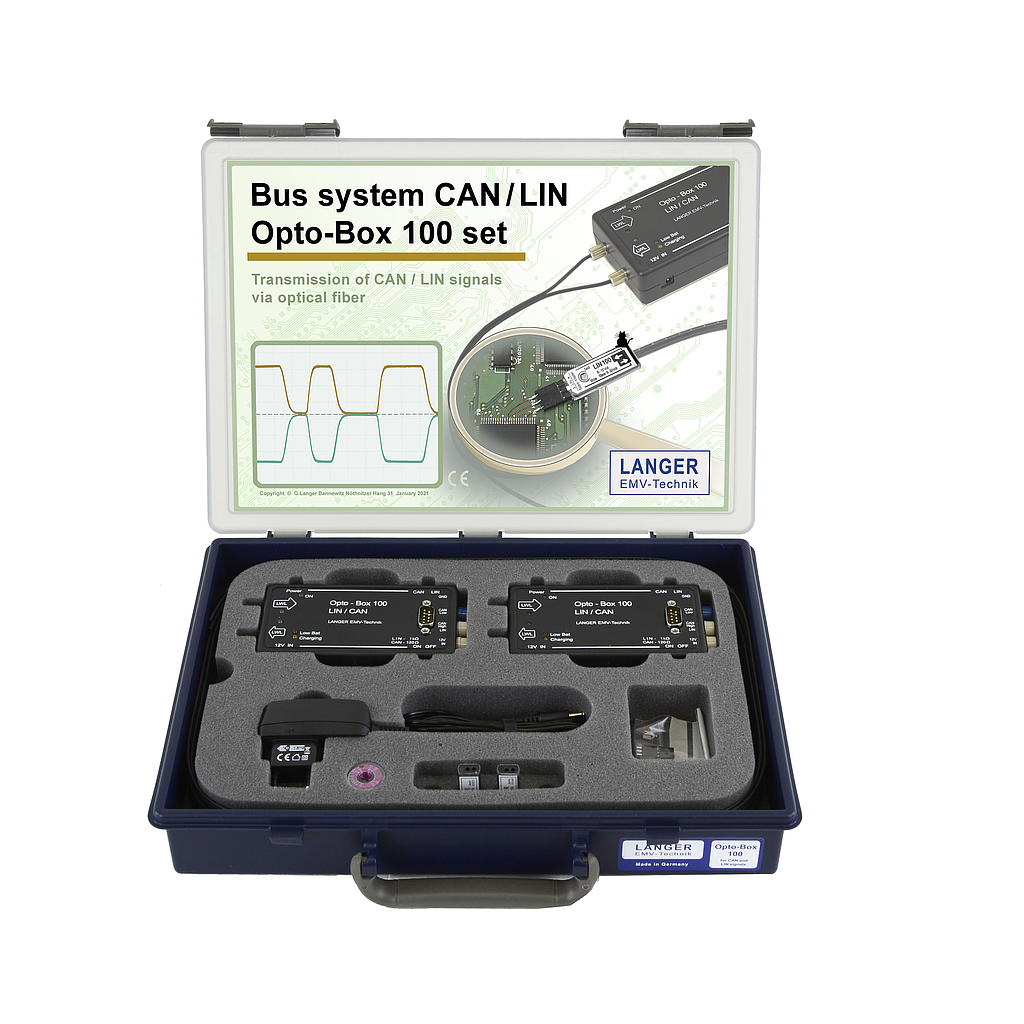

Scope of delivery

2x OB 100, Opto-Box 100

1x CAN 100, Optical Fiber Probe

4x adapter socket, 4-poles, Adapter Socket, 4-Pole

1x LIN 100, Optical Fiber Probe

4x adapter socket, 3-poles, Adapter Socket, 3-Pole

1x LWL double 10 m, Optical Fiber, Double 10 m

1x Wire CuL, Enamelled Copper Wire

1x NT Ex EU, Power Supply Unit

1x OB 100 set m, User manual

1x A4 case, System Case

Short description

The Opto-Box 100 converts electrical CAN or LIN signals into optical signals.

By using two Opto-Box 100, it is easy to split up an existing cable connection and replace a section of the cable with a fiber optic connection.

By combining the OB 100 with a LIN 100 or CAN 100 sensor, a very high disturbance immunity of the respective signal connection can be achieved.
