LANGER EMV-Technik NNB 21 set Line Impedance Stabilization Network

Technical parameters

Frequency range: 100 kHz - 1 GHz

DC resistance: < 20 mΩ

Internal attenuation: 10 dB

Measuring channels: 2

Continuous power rating

Current: 10 A

Dielectric strength: 50 V

Weight: 400 g

Scope of delivery

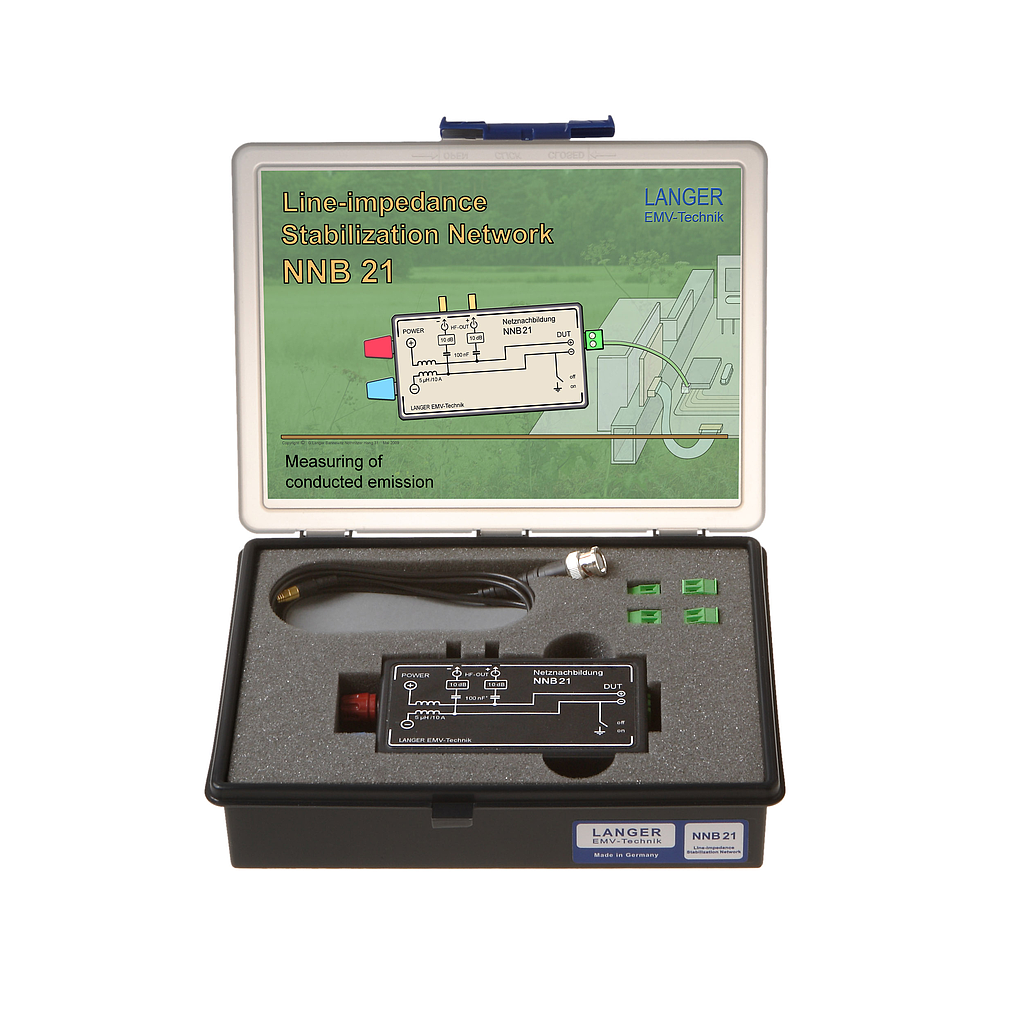

1x NNB 21, Line Impedance Stabilisation Network

1x SMB-BNC 1 m, SMB-BNC Measurement Cable

1x NNB 21 acc, Accessories

1x NNB 21 case, System Case

1x NNB 21 m, NNB 21 Set User Manual

Short description

The NNB 21 line impedance stabilisation network is designed for measuring conducted

disturbance emission of a device under test according to the standard CISPR 25/ISO 7637.

It measures the RF interference, which couples into the vehicle electrical system. Measurements during the development in a frequency range from 100 kHz to 1GHz can be carried out.
