LANGER EMV-Technik MFA 02 set Micro Probes (1 MHz - 1 GHz)

Technical parameters

Frequency range: 1 MHz ... 1 GHz

Resolution: 200 µm

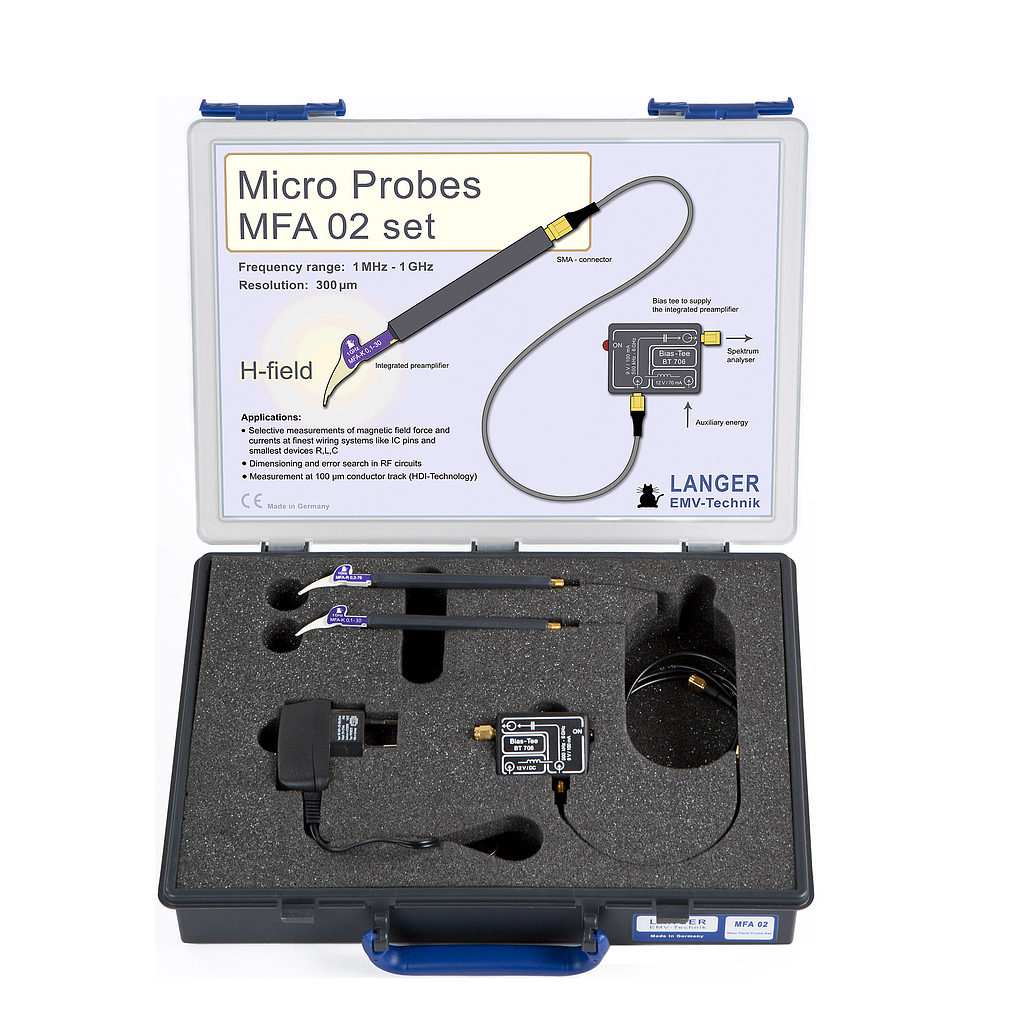

Scope of delivery

1x MFA-R 0.2-75, Near-Field Micro Probe 1 MHz up to 1 GHz

1x MFA-K 0.1-30, Near-Field Micro Probe 1 MHz up to 1 GHz

1x BT 706, Bias Tee for Langer probes

1x SMA-SMA 1 m, SMA-SMA Measuring Cable

1x NT FRI EU, Power Supply Unit

1x MFA acc, Accessories

1x MFA case, System Case Near-Field Probes

Short description

The MFA 02 set includes two high-resolution near-field micro probes used to measure low-frequency magnetic fields up to 1 GHz, e.g. at signal conductors (150 µm), SMD components (0603-0201) or IC pins. Each hand-guided MFA near-field micro probe has an integrated preamplifier.

The amplifier stage (9 V, 100 mA) is powered via the BT 706 bias tee, which has an impedance of 50 Ohm. The near-field micro probes are connected via the BT 706 to a spectrum analyzer or an oscilloscope.

Langer EMV-Technik GmbH includes correction lines in the scope of delivery. With the help of the correction lines the probe’s output voltage is converted into either the respective magnetic field or the current running through the conductor.
