LANGER EMV-Technik HR-R 8-1 set ຊຸດການສືບສວນໃກ້ສະໜາມ (B-field) (up to 40 GHz)

Technical parameters

upper cut-off frequency: 40 GHz

Connector - output: 2.92 mm (K), female, jack

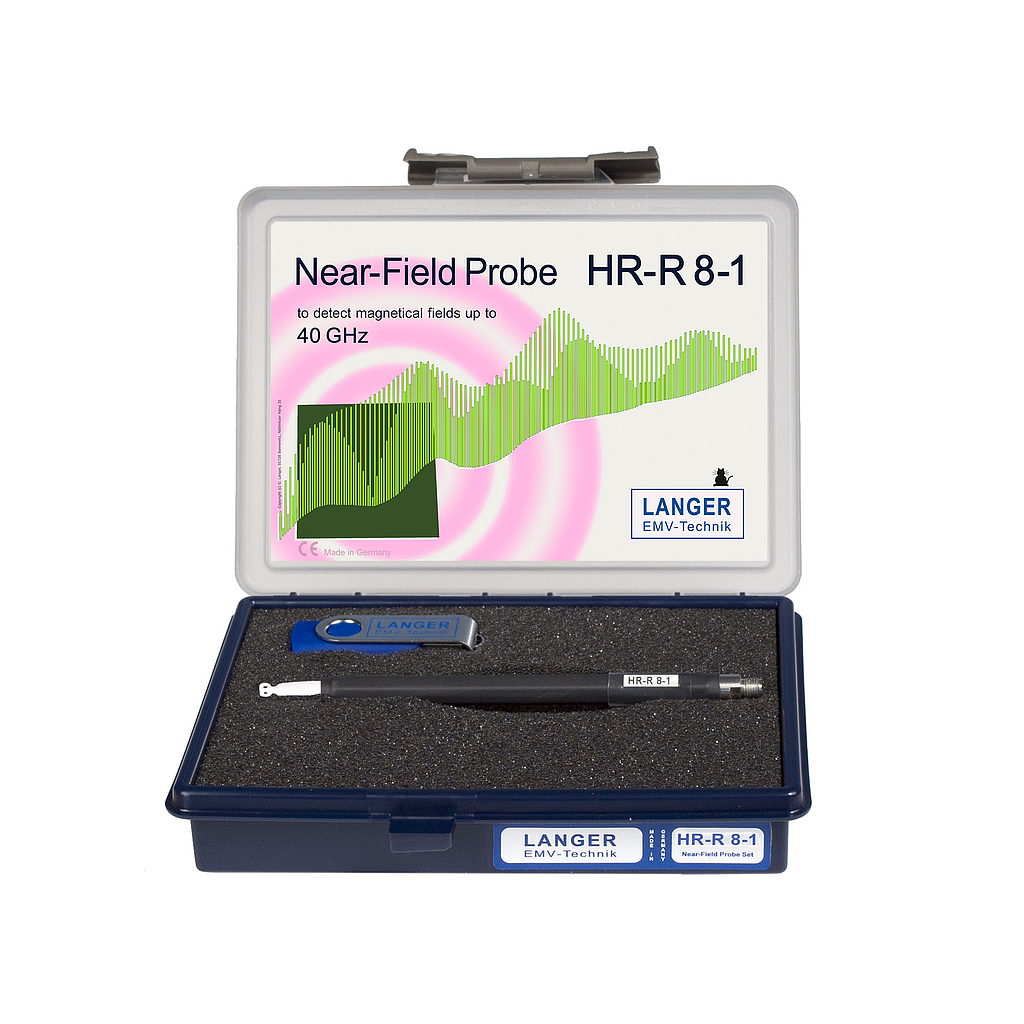

Scope of delivery

1x HR-R 8-1, Near-field probe up to 40 GHz B-field

1x CS-ESA Viewer, ChipScan-ESA Viewer Software / USB

1x HR-R char, HR-R 8-1 Characteristic

1x HR-R 8-1 m, User manual

1x Case 4, System Case Near-Field Probes

Short description

The HR-R 8-1 set contains the HR-R 8-1 B field probe. With this probe magnetic field measurements up to 40 GHz can be performed. The special probe head of the HR-R 8-1 allows measurements on IC’s, circuit board structures and components for the localization of high frequency magnetic fields.

Datasheet
