LANGER EMV-Technik HR-E 40-1 set ກໍານົດການສືບສວນໃກ້ພາກສະຫນາມ (E-field) (up to 40 GHz)

Technical parameters

upper cut-off frequency: 40 GHz

Resolution: 0.2 mm

Connector - output: 2.92 mm (K), female, jack

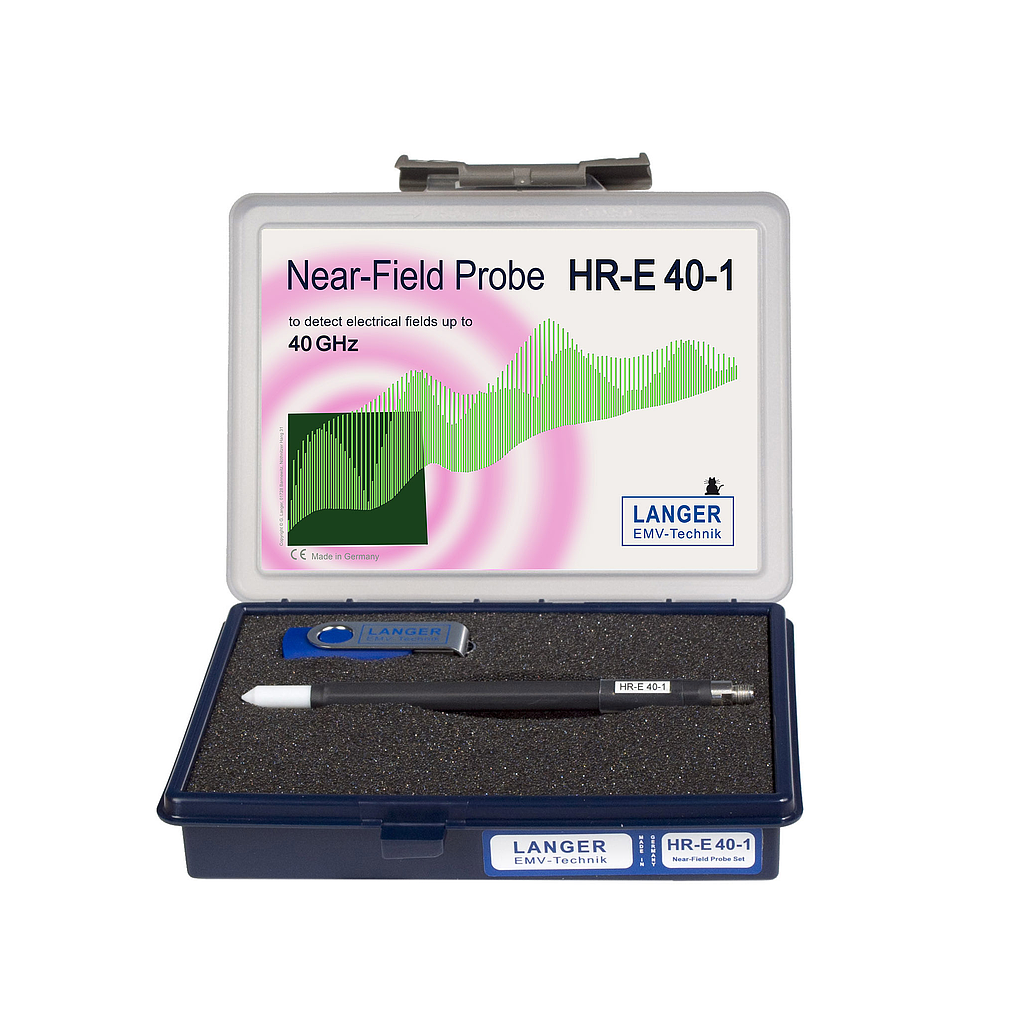

Scope of delivery

1x HR-E 40-1, E-Field Probe up to 40 GHz

1x CS-ESA Viewer, ChipScan-ESA Viewer Software / USB

1x HR-E char, HR-E 40-1 Characteristic

1x HR-E 40-1 m, User manual

1x Case 4, System Case Near-Field Probes

Short description

The HR-E 40-1 set contains the HR-E 40-1 E-field probe. With this field probe measurements up to 40 GHz can be performed.

The special probe head of the HR near-field probe enables measurements to be taken directly on individual conductor tracks to localize E-field sources.
