LANGER EMV-Technik HFW 21 set RF Transformer ປະຈຸບັນ (100 kHz up to 1 GHz)

Technical parameters

Frequency range: 100 kHz - 1 GHz

Weight: 400 g

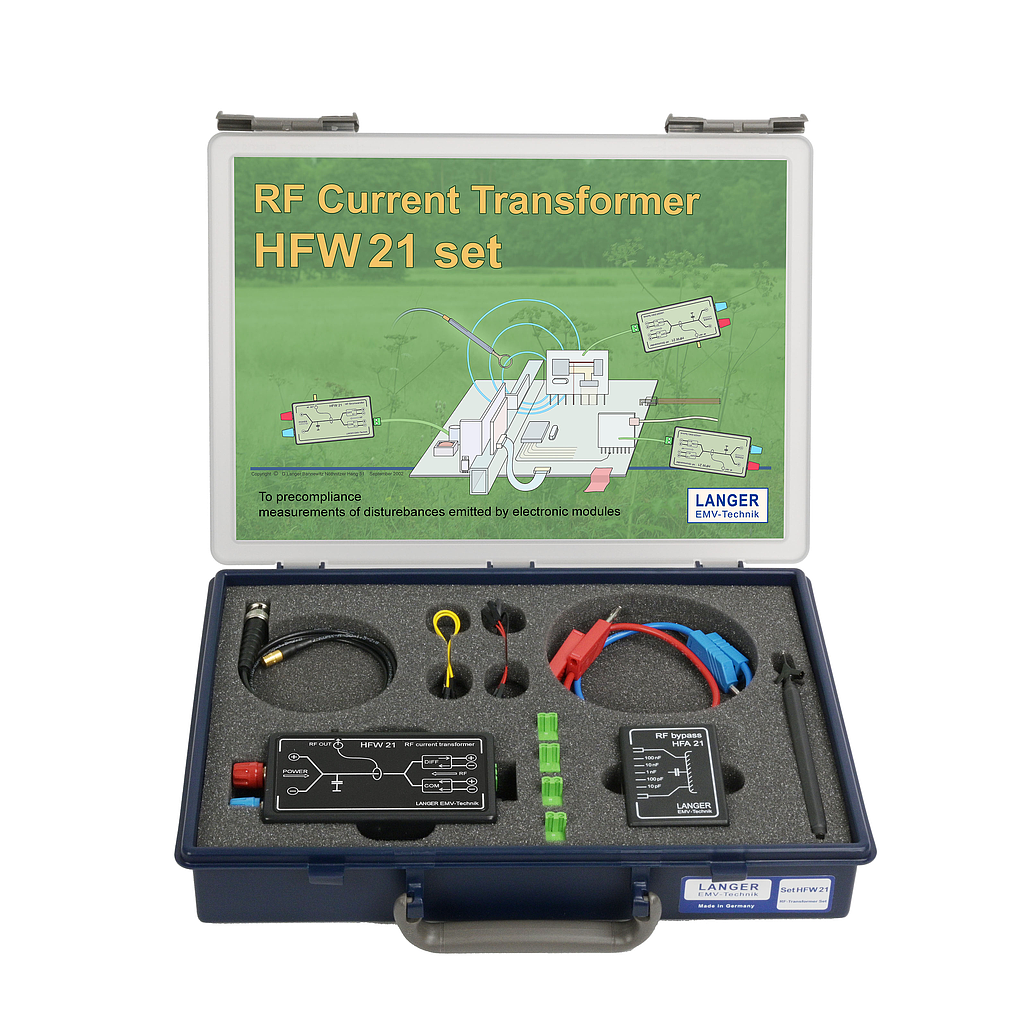

Scope of delivery

1x HFW 21, RF Current Transformer

1x HFA 21, RF Bypass

1x SMB-BNC 1 m, SMB-BNC Measurement Cable

1x HFW 21 acc, Accessories

1x ESA1 m, User Manual

1x HFW 21 case, System Case

Short description

The RF-current transformer measures high-frequency currents at the DUT’s lines. For reproducible measurements a metallic ground plane is needed as a reference plane. The small-scale measurement set-up at the developer’s workspace allows for fast analysis of EMC measuring effects.

The HFW 21 allows for the separate measurement of common-mode currents and differential-mode currents.
