LANGER EMV-Technik CAN 100 set ລະບົບລົດເມ

Technical parameters

CAN 100 Optical Fibre Probe

Transmission range: 0 ... 1 Mbit/s

Optical fibre connector: 2 x Ø 2.2 mm

CAN transceiver: SN65HVD251

Supply voltage: 5 V

Current input: max. 80 mA

Optical fibre: length max. 10 m (max. 6 m at 1 Mbit/s)

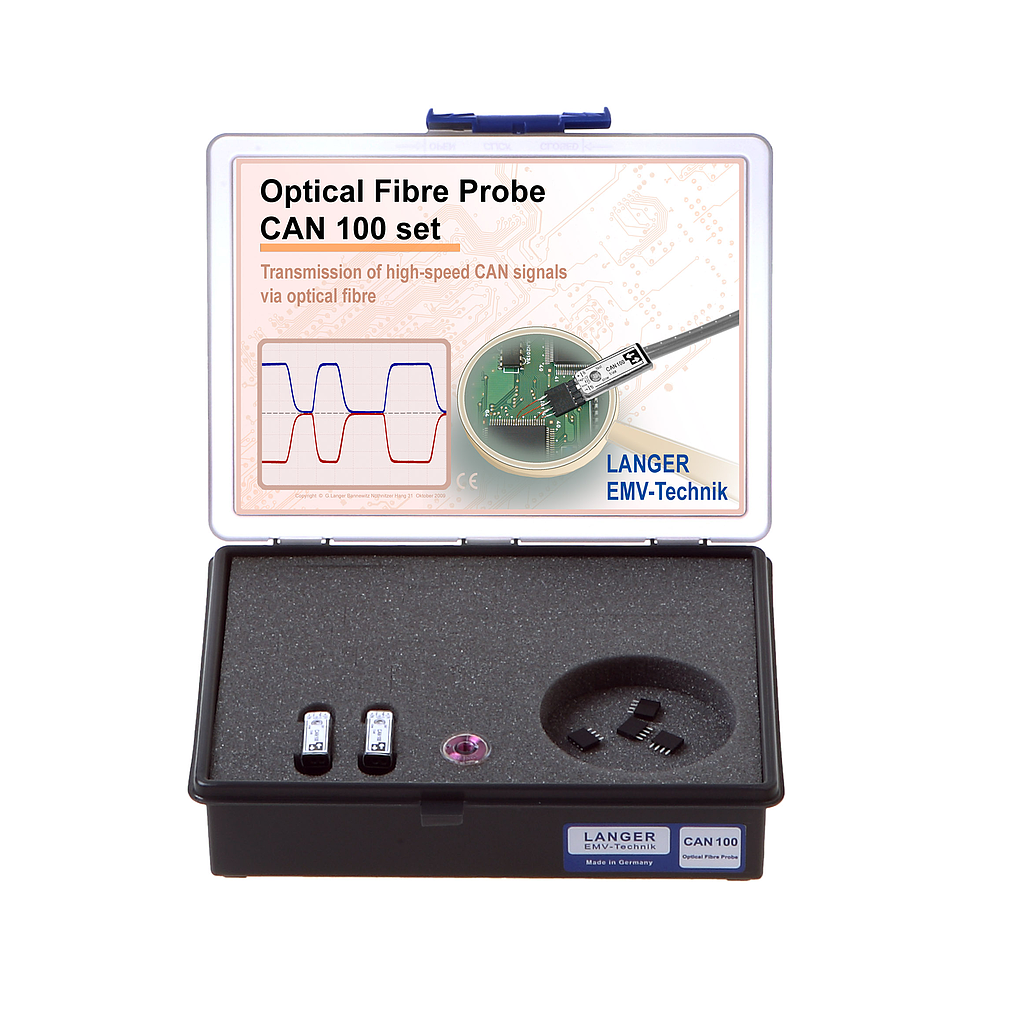

Scope of delivery

2x CAN 100, Optical Fiber Probe

1x LWL double 10 m, Optical Fiber, Double 10 m

1x CAN 100 acc, Accessories

1x A5 case, System case

1x CAN 100 m, CAN 100 Set User Manual

Short description

The CAN 100 set allows for the transmission of high speed CAN signals via optical fiber cables during EMC tests or when there are great potential differences (high voltage). The set consists of 2 small CAN probes.
