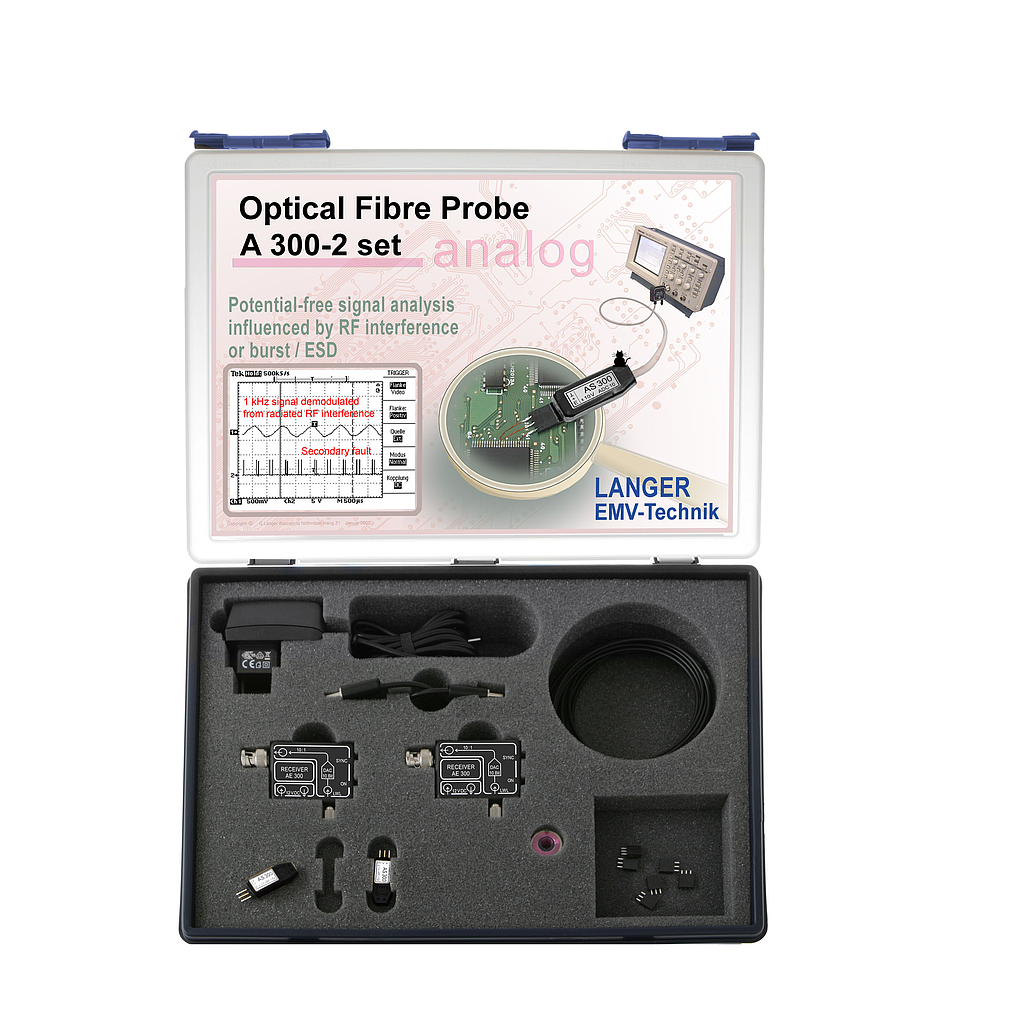

LANGER EMV-Technik A300-2 set Optical Fiber Probe 2-Channel, 5 MHz

Technical parameters

Bandwidth: DC ... 5 MHz

Sampling rate: 12.5 Msps

Resolution: 10 Bit

AE 300 Optical Receiver

Bandwidth: DC ... 5 MHz

Voltage range - output: ±1 V

Optical input: Optical fiber: Ø 2.2 mm

Supply voltage: 12 V ... 16 V

Current input: ≈ 90 mA

AS 300 Optical Sensor

Bandwidth: DC ... 5 MHz

Sampling rate: 12.5 Msps

Measuring range: ± 10 V

Input resistance: 100 kΩ

Radiated immunity: > 200 V/m

Supply voltage: 4.5 V ... 16 V

Current input: 70 mA (4.5 V); 30 mA (16 V)

Optical fibre length: 1 ... 20 m

Scope of delivery

1x AE 300, Optical Receiver

1x AS 300, Optical Sensor, Analog ± 10 V DC

1x LWL Ø 2.2 mm 6 m, Optical Fiber Single 6 m

1x NT FRI EU, Power Supply Unit

1x A300-2 acc, Accessories

1x A300-2 case, System Case

1x Analog m, User Manual

Short description

The A300-2 set consits of two sensors, which allow for displaying oscilloscopically analog signals under EFT/ESD/RF interference potential free. Disturbed signals can be easily detected. In the device under test the sensor transforms the measured logic signals into optical signals. The optical signals are transmitted via a fiber optical cable to the optical receiver which transforms them into electrical signals. These can be presented with an oscilloscope or can be used for controlling other devices. The system is suitable for monitoring signals or devices under test in an anechoic chamber or for EMC optimizing of hard-and software.

For signal detecting within the device under test several sensor types AS 300 or AS 350 with different measuring ranges are available.
