LANGER EMV-Technik A200-1 set Optical Fiber Probe 1-channel, 500 kHz

Technical parameters

Bandwidth: DC ... 500 kHz

Sampling rate: 3 Msps

Resolution: 12 Bit

AE 200 Optical Receiver

Bandwidth: DC ... 500 kHz

Voltage range - output: 0 V ... 10 V

Optical input: Optical fiber: Ø 2.2 mm

Supply voltage: 12 V ... 16 V

Current input: ≈ 100 mA

AS 200 Optical Sensor

Bandwidth: DC ... 500 kHz

Measuring range: 0 V ... 50 V / 0 V ... 10 V DC (switchable)

Input resistance: 100 kΩ

Radiated immunity: > 100 V/m

Supply voltage: 3 V ... 16 V

Current input: ≈ 30 mA

Optical fibre length: 1 m ... 20 m

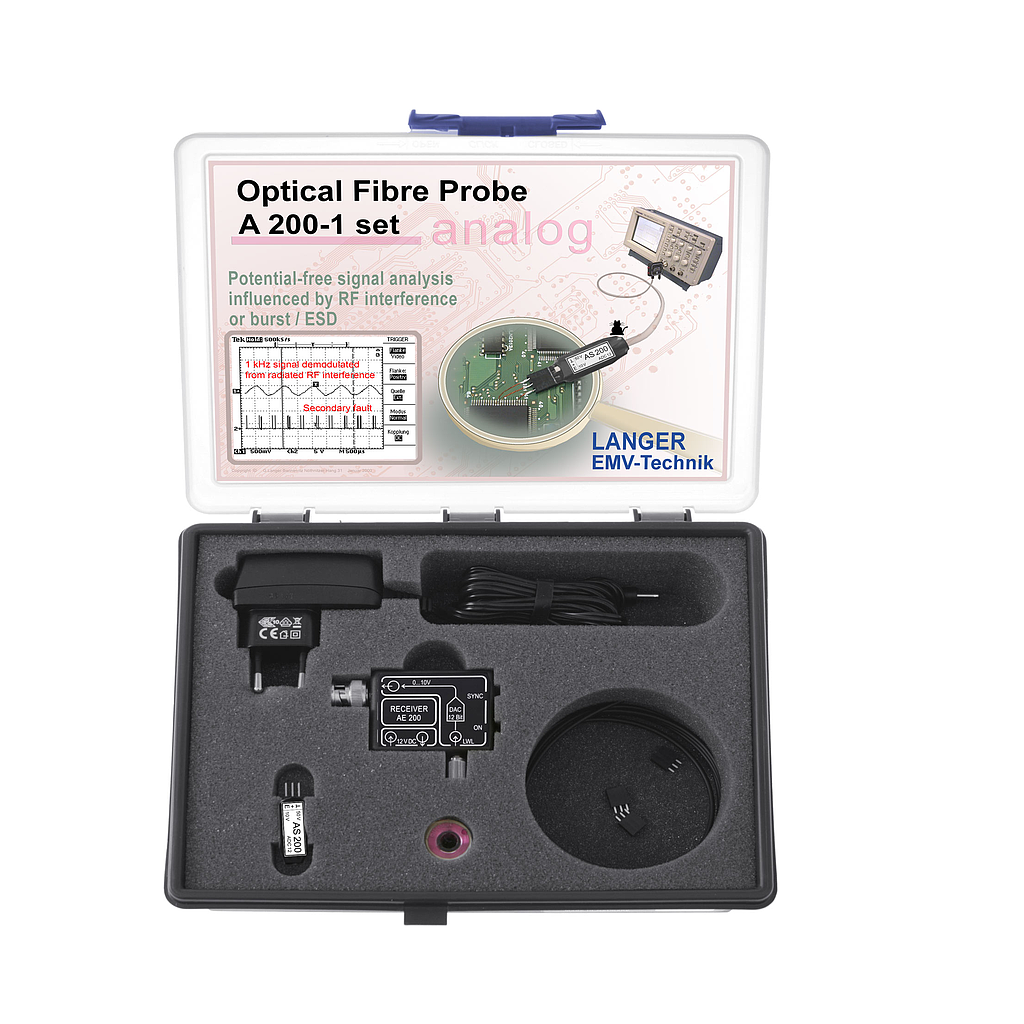

Scope of delivery

1x AE 200, Optical Receiver

1x AS 200, Optical Sensor (50 / 10) V DC

1x LWL Ø 2.2 mm 1.5 m, Optical Fiber Single 1.5 m

1x NT FRI EU, Power Supply Unit

1x A200-1 acc, Accessories

1x A200-1 case, System Case

1x Analog m, User Manual

Short description

The A200-1 set consits of a sensor, which allows for oscilloscopically displaying analog signals under EFT/ESD/RF interference potential free. Disturbed signals can be easily detected. In the device under test the sensor transforms the measured analog signals into optical signals. The optical signals are transmitted via a fiber optical cable to the optical receiver which transforms them into electrical signals. These can be seen with an oscilloscope or can be used for controlling other devices. The system is suitable for monitoring a device under test in an anechoic chamber or for EMC optimizing of hard- and software.
