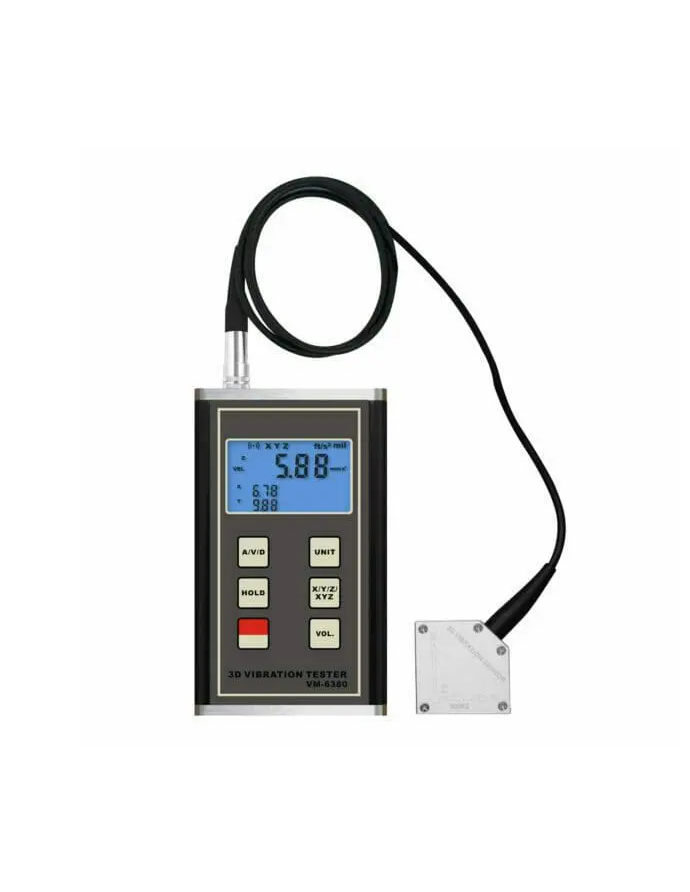

LANDTEK VM-6380 ເຄື່ອງທົດສອບການສັ່ນສະເທືອນ (0.1 ~ 400 m/s², 0.01 ~ 400 mm/s, 0.001 ~ 4.0 mm)

Sensor: Piezoelectric probe

Measurement Range:

Acceleration: 0.1 ~ 400 m/s²; 0.3 ~ 1312 ft/s²; 0.0 ~ 40 g (Peak equivalent)

Velocity: 0.01 ~ 400 mm/s; 0.004 ~ 16.0 inch/s (True RMS)

Displacement: 0.001 ~ 4.0 mm; 0.04 ~ 160.0 mil (Peak equivalent)

Frequency Range:

Acceleration: 10Hz ~ 10kHz

Velocity: 10Hz ~ 1kHz

Displacement: 10Hz ~ 1kHz

Accuracy: ±5% of reading + 2 digits

Operating Conditions:

Temperature: 0 ~ 50°C

Humidity: <90% RH

Power Supply: 2 × AA batteries (1.5V UM-3)

Dimensions: 137 × 76 × 32 mm

Weight: 425 g (excluding batteries)
