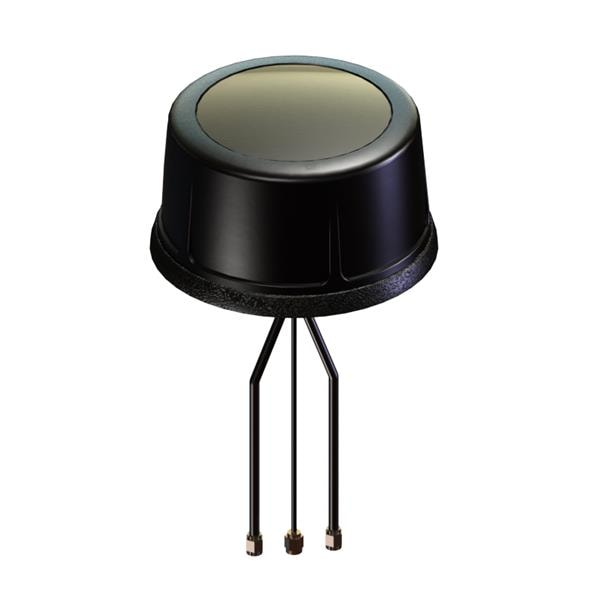

Laird External Antennas VLT69273B2NJ-518A MIMO VEHL PUCK, ສີດຳ, 3 ພອດ 17FT, LTE, GNSS

Gain: 2 dBi, 4.1 dBi, 4.2 dBi, 4.9 dBi

VSWR: 1.4, 1.2, 1.3, 1.2, 2:1

Style: Dome

Length: 132 mm

Diameter: 75 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 17 ft LMR-195M x 2, RG-174

Application: Commercial Vehicle Fleet, FirstNet/Public Safety, Passenger Fleet, Rail Transit

Unit Weight: 800 g

Cable Length: 5.18 m

Polarization: Vertical Linear

Power Rating: 50 W

Mounting Style: Direct / Permanent Mount

Number of Bands: 11 Band

Center Frequency: 752 MHz, 859 MHz, 920 MHz, 1795 MHz, 1920 MHz, 2040 MHz, 2400 MHz, 2600 MHz, 1561.098 MHz, 1.575.42 MHz, 1602 MHz

Mechanical Style: Module

Maximum Frequency: 2.7 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, GNSS, GPS

Protocol - WiFi - 802.11: WiMAX

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C

Protocol - Cellular, NBIoT, LTE: 3G/4G, Cellular (NBIoT, LTE), GSM, UMTS
