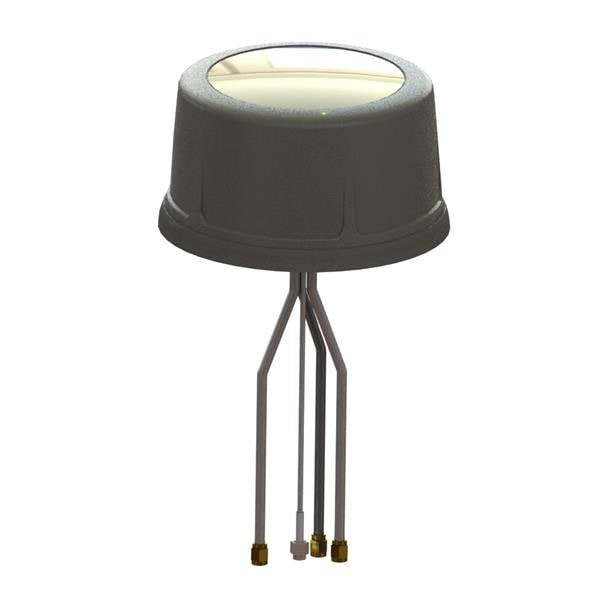

Laird External Antennas VLQ69273B21J-518A MIMO VEHL PUCK, ສີດຳ, 4 ພອດ 17FT, LTE, WIFI, GN

Gain: 2 dbi, 3.6 dBi, 4.8 dBi, 4.4 dbi

VSWR: 1.3, 1.3, 1.3, 1.2

Style: Dome

Length: 132 mm

Diameter: 75 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 17 ft LMR195M x 3, 17 ft RG174

Application: FirstNet/Public Safety, Passenger Fleet, Commercial Vehicle Fleet, Rail Transit

Unit Weight: 1 kg

Cable Length: 5.18 m

Polarization: Vertical Linear

Power Rating: 50 W

Mounting Style: Direct / Permanent Mount

Number of Bands: 7 Band

Center Frequency: 829 MHz 2205 MHz, 2500 MHz, 5400 MHz, 1561.098 MHz, 1.575.42 MHz, 1602 MHz

Mechanical Style: Module

Maximum Frequency: 5.9 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male, RPSMA Male

Protocol - GPS, GLONASS: GNSS

Protocol - WiFi - 802.11: WiMAX

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C

Protocol - Cellular, NBIoT, LTE: 3G/4G, Cellular (NBIoT, LTE), GSM, UMTS

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
