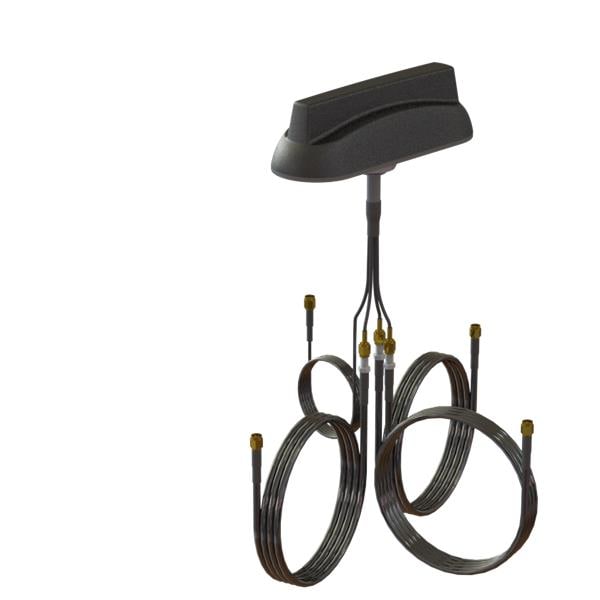

Laird External Antennas VFQ69383W2NJU-518S MIMO VEHICULAR MIMO FIN,4 ພອດ, 2x LTE, UHF, GNSS, ຂາວ

Gain: 3.7 dBi, 0.2 dBi, 1 dBi, 1.4 dBi, 3.2 dBi, 3.8 dBi, 3.1 dBi, 2.4 dBi, 4.2 dBi, 6 dBi, 3.4 dBi, 4.9 dBi, 5.4 dBi

VSWR: 1.7, 1.8, 1.9, 1.9, 1.6, 1.5, 1.5, 1.7, 1.5, 1.3, 2

Style: Sharkfin

Width: 63 mm

Height: 48 mm

Length: 179 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 1 ft LMR100 x 3, 17 ft RG174

Application: FirstNet/Public Safety, Transportation, Aftermarket Fleet, 5G Ready, Rugged LTE Gateways, Others

Cable Length: 0.3 m, 4.9 m

Polarization: Linear - Vertical

Power Rating: 60 W

Mounting Style: Direct / Permanent Mount

Electrical Type: Active

Number of Bands: 13 Band

Center Frequency: 450 MHz, 752 MHz, 859 MHz, 920 MHz, 1785 MHz, 1920 MHz, 2045 MHz, 2400 MHz, 2600 MHz, 3550 MHz, 1561.098 MHz, 1575.42 MHz, 1602 MHz

Mechanical Style: Module

Maximum Frequency: 3.8 GHz

Minimum Frequency: 380 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM, UHF

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, GNSS, GPS

Protocol - WiFi - 802.11: 802.11, WLAN, WiMAX

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C

Protocol - Cellular, NBIoT, LTE: 3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, CBRS

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
