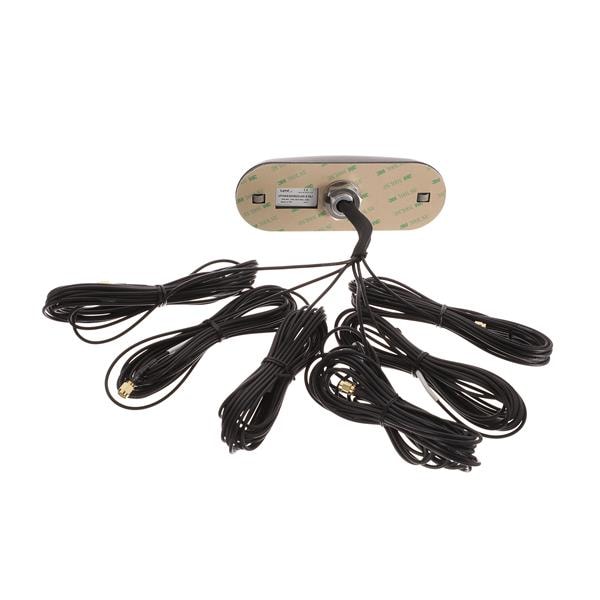

Laird External Antennas VFH69383B23JW-518J MIMO INFRA M2M, ຍານພາຫະນະ, MIMO FIN PROFILE, 6 P

Gain: 1 dBi, -0.1 dBi, 0.2 dBi, 3.6 dBi, 2.7 dBi, 5.1 dBi, 3 dbi, 3 dBi, 3dBi

VSWR: 1.5:1, 1.5:1, 1.5:1, 1.3:1, 1.3:1, 1.2:1, 2:1, 2:1, 2:1

Style: Sharkfin

Width: 63 mm

Height: 48 mm

Length: 179 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 17 ft LMR100 x 5, 17 ft RG174

Application: FirstNet/Public Safety, Transportation, Aftermarket Fleet, 5G Ready, Rugged LTE Gateways, Others

Unit Weight: 720 g

Cable Length: 5.18 m

For Use With: Aftermarket fleet, FirstNet/Public Safety, Rugged LTE Gateways, Transportation

Polarization: Linear - Vertical

Power Rating: 10 W

Mounting Style: Direct / Permanent Mount

Electrical Type: Active

Number of Bands: 9 Band

Center Frequency: 752 MHz, 859 MHz, 920 MHz, 2745 MHz, 2450 MHz, 5450 MHz, 1561.098 MHz, 1575.42 MHz, 1601.97625 MHz

Mechanical Style: Module

Maximum Frequency: 6 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, GNSS, GPS

Protocol - WiFi - 802.11: 802.11, WLAN, WiMAX

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C

Protocol - Cellular, NBIoT, LTE: 3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, CBRS

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
