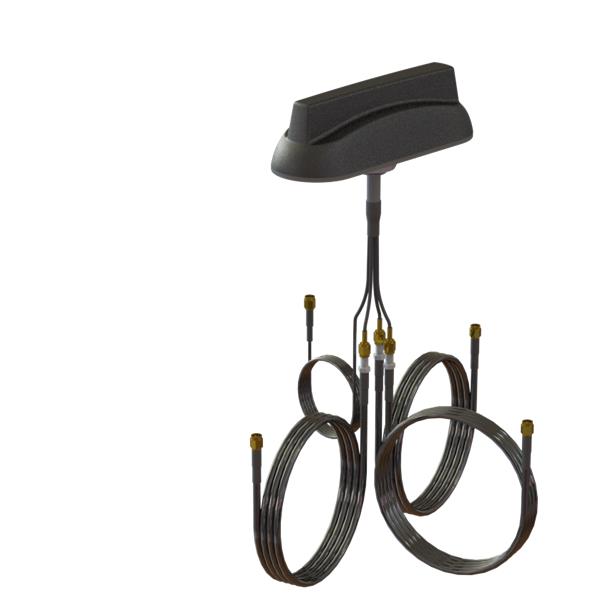

Laird External Antennas VFD69383B2NNN-518R MIMO VHCLR MIMO 698-960-3800MHZTE2

Gain: 0.2 dBi, 1 dBi, 1.5 dBi, 3.6 dBi, 3.5 dBi, 2.9 dBi, 3.2 dBi, 4 dBi, 5.1 dBi

VSWR: 1.7, 1.8, 2.1, 4.9, 3.9, 3.9, 3.9, 4.7, 7.2

Style: Sharkfin

Width: 63 mm

Height: 48 mm

Length: 179 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 1 ft LMR100 x 2, 17 ft LMR195 x 2

Application: FirstNet/Public Safety, Transportation, Aftermarket Fleet, 5G Ready, Rugged LTE Gateways, Others

Cable Length: 0.3 m, 4.9 m

Polarization: Linear - Vertical

Power Rating: 30 W

Mounting Style: Direct / Permanent Mount

Electrical Type: Active

Number of Bands: 12 Band

Center Frequency: 752 MHz, 859 MHz, 920 MHz, 1785 MHz, 1920 MHz, 2045 MHz, 2400 MHz, 2600 MHz, 3550 MHz, 1561.098 MHz, 1575.42 MHz, 1602 MHz

Mechanical Style: Module

Maximum Frequency: 3.8 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Protocol - Sub GHz: ISM

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: 802.11, WLAN, WiMAX

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C

Protocol - Cellular, NBIoT, LTE: 3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, CBRS

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
