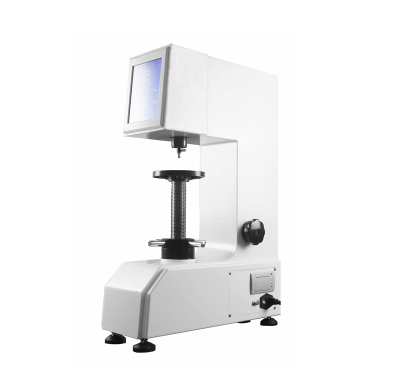

LABTT THR-150DT ເຄື່ອງທົດສອບຄວາມແຂງຂອງ Rockwell ດ້ວຍໜ້າຈໍສຳຜັດ

Initial load of Rockwell: 10kgf(98.07N)

Total load of Rockwell: 60kgf(588N) 100kgf(980N) 150kgf(1471N)

Rockwell Scale: HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、 HRL、HRM、HRR、HRP、HRS、HRV

Hardness testing range: HRA:20-88、HRB:20-100 、HRC:20-70 、HRD:40-77 、HRE:70-100 、HRF:60-100 、HRG:30-94、HRH:80-100、HRK:40-100、HRL:100-120 HRM:85-115、 HRR:114-125

Dwell time: 0-99s

Resolution of hardness value: 0.1HR

Load value error: ＜0.5%

Hardness reading: LCD display

Screen size: 8 inch

Data Storage: Can store 60 kinds of test results, built-in printer, RS-232 interface, optional USB flash disk automatically stored

Conversion Scale: Superficial Rockwell, Brinell, Vickers

Carried Standard: BSEN 6508， ISO 6508， ASTM E18， GB/T230

Max Height of Specimen: 200mm

Distance of Indenter to outer wall: 160mm

Overall Dimension (mm): 560×200×800mm

Net weight: 70kg

Power supply: AC220+5%,50～60Hz
